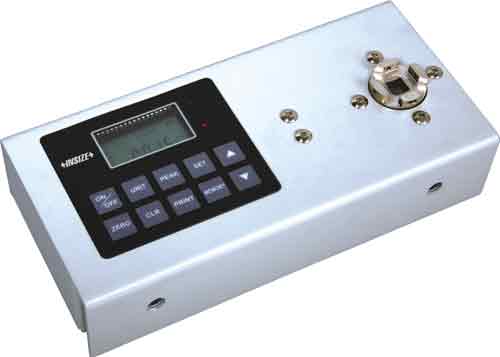

| DIGITAL TORQUE METER |
| |
| Unit in kgf¡¤cm, N¡¤m, lbf¡¤in |
| Data track and hold modes |
| Measure both clockwise and counter clockwise |
| Initial input of the tolerance limit (high / low) enables the device to judge the measured result as GO / NG |
| Heavy-duty metal construction |
| Runs on internal Ni-MH batteries or AC/DC adapter |
| RS232C output |
| Automatical turning off, power off time can be set up |
| Technical specification |
| Model |
IST-
M1 |
IST-
M2 |
IST-
M5 |
IST-
M10 |
IST
-M20 |
IST-
M50 |
IST-
M100 |
IST-
M200 |
IST-
M500 |
| Max. torque (N¡¤m) |
1 |
2 |
5 |
10 |
20 |
50 |
100 |
200 |
500 |
| Resolution (N¡¤m) |
0.0005 |
0.001 |
0.002 |
0.005 |
0.01 |
0.02 |
0.05 |
0.1 |
0.2 |
| Accuracy |
¡À 0.5 % |
¡À 1 % |
|
|
