Özel Kumpaslar (
1 |
2 | 3 |
4 | 5
) |
|
|
 |
|
| |
|
|
|
ELECTRONIC BLADE CALIPER |
| |
|
Code |
Range |
Blade jaw thickness |
|
1188-150 |
0-150mm/0-6" |
0.75mm/0.03'' |
|
1188-200 |
0-200mm/0-8" |
0.75mm/0.03'' |
|
1188-300 |
0-300mm/0-12" |
1.00mm/0.04'' |
|
| |
| The blade jaws
fit into small grooves |
| Resolution:
0.01mm/0.0005" |
| Buttons: zero,
power on/off, inch/mm |
| Battery SR44,
with one spare battery |
| Data output |
| Hardened
stainless steel construction |
| Packed in plastic
box |
|
|
|
|
|
|
|
|
|
| |
| |
|
|
|
BLADE VERNIER CALIPER |
| |
|
Code |
Range |
Blade jaw thickness |
|
1288-150 |
0-150mm/0-6" |
0.75mm/0.03'' |
|
1288-200 |
0-200mm/0-8" |
0.75mm/0.03'' |
|
1288-300 |
0-300mm/0-12" |
1.00mm/0.04'' |
|
| |
| The blade
jaws fit into small grooves |
| Graduation:
0.05mm/1/128" |
| optional
graduations: 0.02mm, 0.05mm, 0.02mm/0.001'' |
| Made of
hardened stainless steel, stain chrome
plated reading surface |
| Packed in
plastic box |
| |
|
|
| |
| |
|
|
|
| |
| |
|
|
|

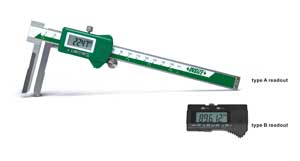

ELECTRONIC INSIDE CALIPER WITH BEVELED
TIPS |
| |
|
Code |
Range |
Jaw length |
Readout type |
|
1123-150 |
15-150mm/0.6-6" |
60mm/2.4'' |
A |
|
1123-1501 |
20-150mm/0.8-6" |
90mm/3.5" |
A |
|
1123-1502 |
25-150mm/1-6" |
150mm/5.9" |
B |
|
1123-200 |
18-200mm/0.7-8" |
75mm/3" |
A |
|
1123-2001 |
22-200mm/0.9-8" |
100mm/3.9" |
A |
|
1123-2002 |
25-200mm/1-8" |
150mm/5.9" |
B |
|
1123-300 |
20-300mm/0.8-12" |
90mm/3.5" |
A |
|
1123-3001 |
22-300mm/0.9-12" |
120mm/4.7'' |
A |
|
1123-3002 |
25-300mm/1-12" |
150mm/5.9'' |
B |
|
| |
| Measure diameter
of deep step holes |
| Resolution:
0.01mm/0.0005" |
| With one spare
battery |
| Data output |
| Hardened
stainless steel construction |
| Packed in plastic
box or wooden box |
|
|
|
|
|
|
|
|
| |
| |
|
|
|
INSIDE VERNIER CALIPER WITH BEVELED TIPS |
| |
|
Code |
Range |
Jaw length |
|
1264-150 |
15-150mm/0.6-6" |
60mm/2.4" |
|
1264-1501 |
20-150mm/0.8-6" |
90mm/3.5" |
|
1264-1502 |
25-150mm/1-6" |
150mm/5.9" |
|
1264-200 |
18-200mm/0.7-8" |
75mm/3" |
|
1264-2001 |
22-200mm/0.9-8" |
100mm/3.9" |
|
1264-2002 |
25-200mm/1-8" |
150mm/5.9" |
|
1264-300 |
20-300mm/0.8-12" |
90mm/3.5" |
|
1264-3001 |
22-300mm/0.9-12" |
120mm/4.7' |
|
1264-3002 |
25-300mm/1-12" |
150mm/5.9' |
|
| |
| Measure
diameter of deep step holes |
| Graduation:
0.05mm/1/128" |
| optional
graduations: 0.02mm, 0.05mm, 0.02mm/0.001'' |
| Made of
hardened stainless steel, stain chrome
plated reading surface |
| Packed in
plastic box or wooden box |
| |
|
|
| |
| |
|
|
|
| |
| |
|
|
|

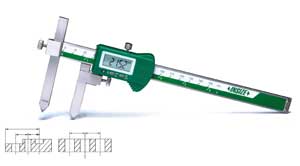

ELECTRONIC OFFSET CENTERLINE CALIPER |
| |
|
Code |
Range |
|
1182-150 |
10-150mm/0.4-6" |
|
1182-200 |
10-200mm/0.4-8" |
|
1182-300 |
10-300mm/0.4-12" |
|
| |
| Measure center to
center distance of holes and measure
distance from edge to center of
holes |
|
Resolution: 0.01mm/0.0005" |
| The adjustable
left jaw permits measuring of even
and uneven planes |
| Hole diameter
should be larger than 1.5mm/0.06",
but small than 10mm/0.39" |
| Buttons: zero,
power on/off, inch/mm |
| Battery SR44,
with one spare battery |
| Data output |
| Hardened
stainless steel construction |
| Packed in plastic
box or wooden box |
|
|
|
|
|
|
|
|
| |
| |
|
|
|
OFFSET CENTERLINE VERNIER CALIPER |
| |
|
Code |
Range |
|
1282-150 |
5-150mm/0.2-6" |
|
1282-200 |
5-200mm/0.2-8" |
|
1282-300 |
5-300mm/0.2-12" |
|
| |
| Measure center to
center distance of holes and measure
distance from edge to center of holes |
| Graduation:
0.05mm/1/128" |
| optional graduations:
0.02mm, 0.05mm, 0.02mm/0.001'' |
| The adjustable left jaw
permits measuring of even and uneven planes |
| Hole diameter should be
larger than 1.5mm/0.06", but small than
10mm/0.39" |
| Made of hardened
stainless steel, stain chrome plated reading
surface |
| Packed in plastic box
or wooden box |
| |
|
|
| |
| |
|
|
|
|
