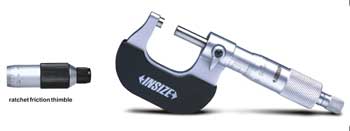

| OUTSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3200-25 |
0-25mm |
3200-1 |
0-1" |
| 3200-50 |
25-50mm |
3200-2 |
1-2" |
| 3200-75 |
50-75mm |
3200-3 |
2-3" |
| 3200-100 |
75-100mm |
3200-4 |
3-4" |
| Code |
Range |
Code |
Range |
| 3200-753 |
0-75mm (3pcs) |
3200-33 |
0-3" (3pcs) |
| 3200-1004 |
0-100mm (4pcs) |
3200-44 |
0-4" (4pcs) |
|
| |
| Graduation:metric 0.01mm
|
| inch 0.0001" |
| DIN863 |
| Ratchet stop (ratchet friction thimble is optional), carbide tips |
| With zero adjusting wrench |
| Supplied with standard rods
|
| Packed in plastic box or wooden box
|
| |
|
|
|
|
|
|
|
| |
| |
|
|
| OUTSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3203-25 |
0-25mm |
3203-1 |
0-1" |
| 3203-50 |
25-50mm |
3203-2 |
1-2" |
| 3203-75 |
50-75mm |
3203-3 |
2-3" |
| 3203-100 |
75-100mm |
3203-4 |
3-4" |
| 3203-125 |
100-125mm |
3203-5 |
4-5" |
| 3203-150 |
125-150mm |
3203-6 |
5-6" |
| 3203-175 |
150-175mm |
3203-7 |
6-7" |
| 3203-200 |
175-200mm |
3203-8 |
7-8" |
| 3203-225 |
200-225mm |
3203-9 |
8-9" |
| 3203-250 |
225-250mm |
3203-10 |
9-10" |
| 3203-275 |
250-275mm |
3203-11 |
10-11" |
| 3203-300 |
275-300mm |
3203-12 |
11-12" |
| Code |
Range |
Code |
Range |
| 3203-753 |
0-75mm (3pcs) |
3203-33 |
0-3" (3pcs) |
| 3203-1004 |
0-100mm (4pcs) |
3203-44 |
0-4" (4pcs) |
| 3203-1506 |
0-150mm (6pcs) |
3203-66 |
0-6" (6pcs) |
| 3203-3006 |
150-300mm (6pcs) |
3203-126 |
6-12" (6pcs) |
| 3203-3012 |
0-300mm (12pcs) |
3203-1212 |
0-12" (12pcs) |
|
| |
| Graduation: metric 0.01mm
|
| inch 0.0001" |
| DIN863 |
| Ratchet stop, carbide tips |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
| |
|
|
|
| |
| |
|
|

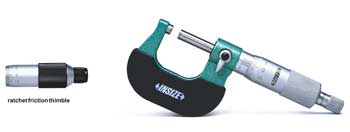

| OUTSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3202-25 |
0-25mm |
3202-1 |
0-1" |
| 3202-50 |
25-50mm |
3202-2 |
1-2" |
| 3202-75 |
50-75mm |
3202-3 |
2-3" |
| 3202-100 |
75-100mm |
3202-4 |
3-4" |
| 3202-125 |
100-125mm |
3202-5 |
4-5" |
| 3202-150 |
125-150mm |
3202-6 |
5-6" |
| 3202-175 |
150-175mm |
3202-7 |
6-7" |
| 3202-200 |
175-200mm |
3202-8 |
7-8" |
| Code |
Range |
Code |
Range |
| 3202-753 |
0-75mm (3pcs) |
3202-33 |
0-3" (3pcs) |
| 3202-1004 |
0-100mm (4pcs) |
3202-44 |
0-4" (4pcs) |
| 3202-1506 |
0-150mm (6pcs) |
3202-66 |
0-6" (6pcs) |
|
| |
| Graduation:metric 0.01mm
|
| inch 0.0001" |
| DIN863 |
| Ratchet stop(ratchet friction thimble is optional), carbide tips |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box
|
| |
|
|
|
|
|
|
| |
| |
|
|
| OUTSIDE MICROMETER |
| |
| Code |
Range |
| 3210-25 |
0-25mm |
| 3210-50 |
25-50mm |
| 3210-75 |
50-75mm |
| 3210-100 |
75-100mm |
| 3210-125 |
100-125mm |
| 3210-150 |
125-150mm |
| 3210-175 |
150-175mm |
| 3210-200 |
175-200mm |
| 3210-225 |
200-225mm |
| 3210-250 |
225-250mm |
| 3210-275 |
250-275mm |
| 3210-300 |
275-300mm |
| Code |
Range |
| 3210-753 |
0-75mm (3pcs) |
| 3210-1004 |
0-100mm (4pcs) |
| 3210-1506 |
0-150mm (6pcs) |
| 3210-3006 |
150-300mm (6pcs) |
| 3210-3012 |
0-300mm (12pcs) |
|
| |
| Graduation: 0.001mm |
| DIN863 |
| Ratchet stop, carbide tips |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| NO-PARALLAX OUTSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3207-25 |
0-25mm |
3207-1 |
0-1" |
| 3207-50 |
25-50mm |
3207-2 |
1-2" |
| 3207-75 |
50-75mm |
3207-3 |
2-3" |
| 3207-100 |
75-100mm |
3207-4 |
3-4" |
| 3207-125 |
100-125mm |
3207-5 |
4-5" |
| 3207-150 |
125-150mm |
3207-6 |
5-6" |
| 3207-175 |
150-175mm |
3207-7 |
6-7" |
| 3207-200 |
175-200mm |
3207-8 |
7-8" |
|
| |
| No-parallax |
| Graduation: metric 0.001mm |
| inch 0.0001" |
| DIN863 |
| Ratchet stop,carbide tips |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
| |
|
|
