| UNIVERSAL MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3280-25 |
0-25mm |
3280-1 |
0-1" |
| 3280-50 |
25-50mm |
3280-2 |
1-2" |
| 3280-75 |
50-75mm |
3280-3 |
2-3" |
| 3280-100 |
75-100mm |
3280-4 |
3-4" |
| 3280-125 |
100-125mm |
3280-5 |
4-5" |
| 3280-150 |
125-150mm |
3280-6 |
5-6" |
| 3280-175 |
150-175mm |
3280-7 |
6-7" |
| 3280-200 |
175-200mm |
3280-8 |
7-8" |
|
| |
| Graduation: metric 0.01mm |
| inch 0.001" |

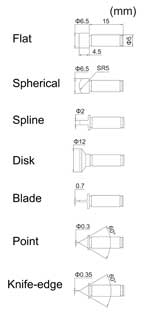

| With 7 pairs of measuring tips:flat, spherical, spline, disk, blade, |
| point 60¡ã(55¡ã is optional), knife-edge 60¡ã(55¡ã is optional) |
| Ratchet stop |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
|
| |
|
|
| |
| |
|
|
|
|
|
| |
| |
|
|
| ELECTRONIC UNIVERSAL MICROMETER |
| |
| Code |
Code |
Range |
| 3580-25 |
3180-25 |
0-25mm/0-1" |
| 3580-50 |
3180-50 |
25-50mm/1-2" |
| 3580-75 |
3180-75 |
50-75mm/2-3" |
| 3580-100 |
3180-100 |
75-100mm/3-4" |
| 3580-125 |
3180-125 |
100-125mm/4-5" |
| 3580-150 |
3180-150 |
125-150mm/5-6" |
| 3580-175 |
3180-175 |
150-175mm/6-7" |
| 3580-200 |
3180-200 |
175-200mm/7-8" |
|
| |
| Resolution:0.001mm/0.00005" |
| With 7 pairs of measuring tips:flat,spherical,spline,disk,blade,point 60¡ã |
| (55¡ãis optional), knife-edge 60¡ã (55¡ã is optional) |
| Buttons:on/off, data set, mm/inch, ABS/INC, data output |
| 3580 is IP54 protection |
| SR44 battery, with one spare battery, auto power off |
| RS232 output, 3580 is supplied with data output cable |
| With battery cover wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
|
| |
|
|
3580 |
| 3180 |
|
|
|
| |
|
|
|
|
