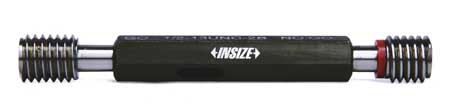

| INCH THREAD PLUG GAGE |
| |
| |
| Code |
Thread |
Code |
Thread |
| 4132-02 |
0 - 80UNF |
4132-1A3 |
1/2 - 28UNEF |
| 4132-11 |
1 - 64UNC |
4132-9D1 |
9/16 - 12UNC |
| 4132-12 |
1 - 72UNF |
4132-9D2 |
9/16 - 18UNF |
| 4132-21 |
2 - 56UNC |
4132-9D3 |
9/16 - 24UNEF |
| 4132-22 |
2 - 64UNF |
4132-5C1 |
5/8 - 11UNC |
| 4132-31 |
3 - 48UNC |
4132-5C2 |
5/8 - 18UNF |
| 4132-32 |
3 - 56UNF |
4132-5C3 |
5/8 - 24UNEF |
| 4132-41 |
4 - 40UNC |
4132-11D3 |
11/16 - 24UNEF |
| 4132-42 |
4 - 48UNF |
4132-3B1 |
3/4 - 10UNC |
| 4132-51 |
5 - 40UNC |
4132-3B2 |
3/4 - 16UNF |
| 4132-52 |
5 - 44UNF |
4132-3B3 |
3/4 - 20UNEF |
| 4132-61 |
6 - 32UNC |
4132-7C1 |
7/8 - 9UNC |
| 4132-62 |
6 - 40UNF |
4132-7C2 |
7/8 - 14UNF |
| 4132-81 |
8 - 32UNC |
4132-7C3 |
7/8 - 20UNEF |
| 4132-82 |
8 - 36UNF |
4132-15D3 |
15/16 - 20UNEF |
| 4132-101 |
10 - 24UNC |
4132-14 |
1 - 8UNC |
| 4132-102 |
10 - 32UNF |
4132-15 |
1 - 12UNF |
| 4132-121 |
12 - 24UNC |
4132-16 |
1 - 20UNEF |
| 4132-122 |
12 - 28UNF |
4132-1E3 |
1-1/16 - 18UNEF |
| 4132-123 |
12 - 32UNEF |
4132-1F1 |
1-1/8 - 7UNC |
| 4132-1B1 |
1/4 - 20UNC |
4132-1F2 |
1-1/8 - 12UNF |
| 4132-1B2 |
1/4 - 28UNF |
4132-1F3 |
1-1/8 - 18UNEF |
| 4132-1B3 |
1/4 - 32UNEF |
4132-3E3 |
1-3/16 - 18UNEF |
| 4132-5D1 |
5/16 - 18UNC |
4132-1G1 |
1-1/4 - 7UNC |
| 4132-5D2 |
5/16 - 24UNF |
4132-1G2 |
1-1/4 - 12UNF |
| 4132-5D3 |
5/16 - 32UNEF |
4132-1G3 |
1-1/4 - 18UNEF |
| 4132-3C1 |
3/8 - 16UNC |
4132-5E3 |
1-5/16 - 18UNEF |
| 4132-3C2 |
3/8 - 24UNF |
4132-3F1 |
1-3/8 - 6UNC |
| 4132-3C3 |
3/8 - 32UNEF |
4132-3F2 |
1-3/8 - 12UNF |
| 4132-7D1 |
7/16 - 14UNC |
4132-3F3 |
1-3/8 - 18UNEF |
| 4132-7D2 |
7/16 - 20UNF |
4132-7E3 |
1-7/16 - 18UNEF |
| 4132-7D3 |
7/16 - 28UNEF |
4132-1H1 |
1-1/2 - 6UNC |
| 4132-1A1 |
1/2 - 13UNC |
4132-1H2 |
1-1/2 - 12UNF |
| 4132-1A2 |
1/2 - 20UNF |
4132-1H3 |
1-1/2 - 18UNEF |
|
| |
| Accuracy grade 2B (optional grade 3B)
|
| Standard ANSI B1.2
|
| Larger sizes are available upon request
|
| Double ends with Go and No Go
|
| Packed in plastic box or wooden box
|
| |
|
|
|
|
|
|
|
|
