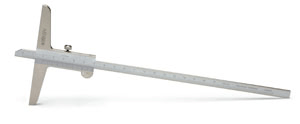

DEPTH CALIPER |
| |
|
Code |
Range |
Base length |
|
1240-150 |
0-150mm |
100mm |
|
1240-200 |
0-200mm |
100mm |
|
1240-300 |
0-300mm |
100mm |
|
1240-500 |
0-500mm |
150mm |
|
1240-6 |
0-6" |
3.9'' |
|
1240-8 |
0-8" |
3.9'' |
|
1240-12 |
0-12" |
3.9'' |
|
1240-20 |
0-20" |
5.9'' |
|
| |
|
Graduation: metric 0.05mm(option:
0.02mm) inchl 0.001" |
|
Meet DIN862, made of hardened
stainless steel, satin chrome plated
reading surface |
|
Packed in plastic box or wooden box |
|
|
|
|
|
|
|
|
|
| |
| |
|
|
|

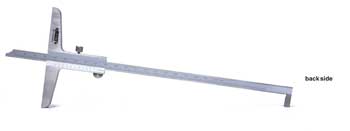

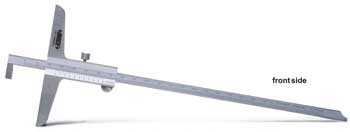

DEPTH CALIPER WITH HOOK |
| |
|
Code |
Range |
Base length |
|
1241-150 |
0-150mm |
100mm |
|
1241-200 |
0-200mm |
100mm |
|
1241-300 |
0-300mm |
150mm |
|
1241-400 |
0-400mm |
150mm |
|
1241-6 |
0-6" |
3.9'' |
|
1241-8 |
0-8" |
3.9'' |
|
1241-12 |
0-12" |
5.9'' |
|
1241-16 |
0-16" |
5.9'' |
|
|
Graduation on two sides |
|
Graduation: metric
0.05mm(option:0.02mm) inchl 0.001" |
|
Meet DIN862, made of hardened
stainless steel, satin chrome
plating finish on reading surface |
|
Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
|
|

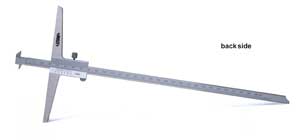

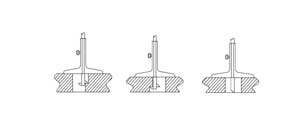

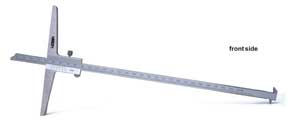

DEPTH CALIPER WITH TWO HOOKS |
| |
|
Code |
Range |
Base length |
|
1246-200 |
0-200mm |
100mm |
|
1246-300 |
0-300mm |
150mm |
|
1246-8 |
0-8" |
3.9'' |
|
1246-12 |
0-12" |
5.9'' |
|
| |
| Graduation:
metric 0.05mm(option:0.02mm) inch
0.001"
Graduation on two sides |
|
Meet DIN862, made of hardened
stainless steel, satin chrome
plating finish on reading surface |
|
Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
|
DEPTH CALIPER WITH NEEDLE TIP |
| |
|
Code |
Range |
Base length |
|
1242-80 |
0-80mm |
50mm |
|
1242-160 |
0-160mm |
100mm |
|
1242-300 |
0-300mm |
150mm |
|
1242-3 |
0-3'' |
2'' |
|
1242-6 |
0-6'' |
3.9'' |
|
1242-12 |
0-12'' |
3.9'' |
|
| |
|
Graduation: 0.05mm (option:0.02mm)
inch 0.001'' |
|
Meet DIN862, made of hardened
stainless steel, satin chrome
plating finish on reading surface |
|
Packed in plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|
DEPTH CALIPER |
| |
|
Code |
Range |
Base length |
|
1247-150 |
0-150mm |
100mm |
|
1247-200 |
0-200mm |
100mm |
|
1247-300 |
0-300mm |
100mm |
|
1247-6 |
0-6'' |
3.9'' |
|
1247-8 |
0-8'' |
3.9'' |
|
1247-12 |
0-12'' |
3.9'' |
|
| |
|
Graduation: 0.05mm (option:0.02mm)
inch 0.001'' |
|
Mee tDIN862, made of hardened
stainless steel, satin chrome
plating finish on reading surface |
|
Extension base is optional |
|
Packed in plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|

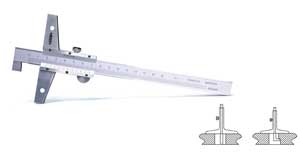

DEPTH CALIPER WITH HOOK |
| |
|
Code |
Range |
Base length |
|
1248-150 |
0-150mm |
100mm |
|
1248-200 |
0-200mm |
100mm |
|
1248-300 |
0-300mm |
100mm |
|
1248-500 |
0-500mm |
150mm |
|
1248-6 |
0-6'' |
3.9'' |
|
1248-8 |
0-8'' |
3.9'' |
|
1248-12 |
0-12'' |
3.9'' |
|
1248-20 |
0-20'' |
5.9'' |
|
| |
|
Graduation: 0.05mm (option:0.02mm)
inch 0.001'' |
|
Meet tDIN862, made of stainless
steel, satin chrome plating finish
on reading surface |
|
Extension base is optional |
|
Packed in plastic box or wooden box |
| |
|
|
|
|
|
