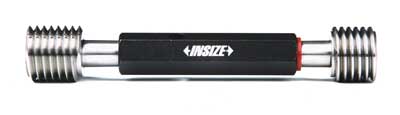

| METRIC THREAD PLUG GAGE |
| |
| Code |
Size |
Standard pitch |
| 4130-1 |
M1.0
|
0.25 |
| 4130-1D1 |
M1.1
|
0.25 |
| 4130-1D2 |
M1.2
|
0.25 |
| 4130-1D4 |
M1.4
|
0.30 |
| 4130-1D6 |
M1.6
|
0.35 |
| 4130-1D8 |
M1.8
|
0.35 |
| 4130-2 |
M2.0
|
0.40 |
| 4130-2D2 |
M2.2
|
0.45 |
| 4130-2D5 |
M2.5
|
0.45 |
| 4130-3 |
M3.0
|
0.50 |
| 4130-3D5 |
M3.5
|
0.60 |
| 4130-4 |
M4.0
|
0.70 |
| 4130-5 |
M5.0
|
0.80 |
| 4130-6 |
M6.0
|
1.00 |
| 4130-8 |
M8.0
|
1.25 |
| 4130-10 |
M10.0
|
1.50 |
| 4130-12 |
M12.0
|
1.75 |
| 4130-14 |
M14.0
|
2.00 |
| 4130-16 |
M16.0
|
2.00 |
| 4130-18 |
M18.0
|
2.50 |
| 4130-20 |
M20.0
|
2.50 |
| 4130-22 |
M22.0
|
2.50 |
| 4130-24 |
M24.0 |
3.00 |
| 4130-27 |
M27.0 |
3.00 |
| 4130-30 |
M30.0 |
3.50 |
| 4130-33 |
M33.0 |
3.50 |
| 4130-36 |
M36.0 |
4.00 |
| 4130-39 |
M39.0 |
4.00 |
| 4130-42 |
M42.0 |
4.50 |
| 4130-45 |
M45.0 |
4.50 |
| 4130-48 |
M48.0 |
5.00 |
| 4130-52 |
M52.0 |
5.00 |
| 4130-56 |
M56.0 |
5.50 |
| 4130-60 |
M60.0 |
5.50 |
| 4130-64 |
M64.0 |
6.00 |
| 4130-68 |
M68.0 |
6.00 |
| 4130-72 |
M72.0 |
6.00 |
| 4130-76 |
M76.0 |
6.00 |
| 4130-80 |
M80.0 |
6.00 |
| 4130-85 |
M85.0 |
6.00 |
| 4130-90 |
M90.0 |
6.00 |
| 4130-95 |
M95.0 |
6.00 |
| 4130-100 |
M100.0 |
6.00 |
| 4130-105 |
M105.0 |
6.00 |
| 4130-110 |
M110.0 |
6.00 |
| 4130-115 |
M115.0 |
6.00 |
| 4130-120 |
M120.0 |
6.00 |
| 4130-125 |
M125.0 |
6.00 |
| 4130-130 |
M130.0 |
6.00 |
| 4130-140 |
M140.0 |
6.00 |
|
| |
| Accuracy grade 6H (optional grade 5H, 6G, 7H)
|
| Standard DIN13 or ISO1502-96
|
| Larger sizes are available upon request
Non standard pitches are available upon request |
| Double ends with Go and No Go
|
| Packed in plastic box or wooden box
|
| |
|
|
|
|
|
|
|
|
