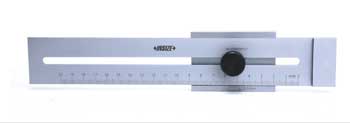

| MARKING GAGE |
| |
| Code |
Range |
| 7120-200 |
200mm |
| 7120-250 |
250mm |
| 7120-300 |
300mm |
| 7120-8 |
8'' |
| 7120-10 |
10'' |
| 7120-12 |
12'' |
|
| |
| Graduation: metric:1mm inch:1/128'' |
| Satin chrome finish scale |
| Made of stainless steel |
| Packed in wooden box |
| |
|
|
|
|
|
|
|
| |
| |
|
|
| MARKING GAGE |
| |
| Code |
Range |
| 7201-150 |
0-150mm/0-6'' |
| 7201-200 |
0-200mm/0-8'' |
| 7201-250 |
0-250mm/0-10'' |
| 7201-300 |
0-300mm/0-12'' |
|
| |
| Graduation: 0.1mm/1/128'' |
| Length of jaws: 40mm/1.6'' |
| Satin chrome finish scale |
| Made of carbon steel |
| Packed in wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| MARKING GAGE |
| |
| Code |
Range |
| 7202-200 |
0-200mm/0-8" |
| 7202-400 |
0-400mm/0-16" |
|
| |
| Graduation: 0.1mm and 1/128" |
| Satin chrome finish scale |
| Made of stainless steel |
| Packed in wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| MARKING GAGE |
| |
| Code |
Range |
| 7203-500 |
90-500mm/3.5-20'' |
| 7203-1000 |
90-1000mm/3.5-40'' |
|
| |
| Graduation: 0.1mm and 1/128" |
| Satin chrome finish scale |
| Made of carbon steel |
| Packed in wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| MARKING GAGE |
| |
| Code |
Range |
| 7204-200 |
0-200mm |
| 7204-300 |
0-300mm |
| 7204-400 |
0-400mm |
| 7204-500 |
0-500mm |
|
| |
| Graduation: 0.1mm |
| Made of carbon steel |
| Round beam, with fine adjustment |
| Packed in wooden box |
| |
|
|
|
| |
|
|
|
| |
| |
|
|
| T-SHAPE MARKING GAGE |
| |
Code |
Range |
1275-160 |
0-160mm |
| 1275-250 |
0-250mm |
| 1275-300 |
0-300mm |
| 1275-400 |
0-400mm |
|
| |
| Graduation: 0.05mm |
| With locking clamp |
| Madeof hardened stainless steel, satin chrome plated reading surface |
| Packed in wooden box |
| |
|
|
|
| |
|
|
|
| |
| |
|
|
| CENTERING MARKING GAGE |
| |
Code |
Size |
Workpiece diameter |
7205-100 |
100X70mm |
<90mm |
| 7205-150 |
150x130mm |
<190mm |
| 7205-200 |
200x150mm |
<220mm |
| 7205-250 |
250x160mm |
<230mm |
| 7205-300 |
300x180mm |
<280mm |
| 7205-4 |
4x2.8" |
<3.5" |
| 7205-6 |
6x5.1" |
<7.5" |
| 7205-8 |
8x6" |
<8.6" |
| 7205-10 |
10x6.4" |
<9.0" |
| 7205-12 |
12x7.1" |
<11.0" |
|
| |
| Marking the center of round plates and shafts |
| With graduation on the beam |
| Made of stainless steel, stain chrome plated scale |
| Packed in wooden box |
| |
|
|
|
| |
|
|
