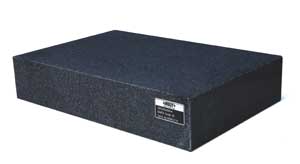

| GRANITE SURFACE PLATE |
| |
| Code |
Size |
Code |
Size |
| 6900-32 |
300x200x60mm |
6900-3121 |
12x12x4'' |
| 6900-42 |
400x250x60mm |
6900-3122 |
12x18x4'' |
| 6900-44 |
400x400x60mm |
6900-3182 |
18x24x4'' |
| 6900-53 |
500x315x70mm |
6900-3242 |
24x24x6'' |
| 6900-55 |
500x500x80mm |
6900-3243 |
24x36x6'' |
| 6900-64 |
630x400x80mm |
6900-3363 |
36x36x6'' |
| 6900-66 |
630x630x100mm |
6900-3364 |
36x48x8'' |
| 6900-85 |
800x500x100mm |
6900-3366 |
36x60x10'' |
| 6900-0106 |
1000x630x140mm |
6900-3367 |
36x72x12'' |
| 6900-0107 |
1000x750x150mm |
6900-3387 |
48x72x12'' |
| 6900-0101 |
1000x1000x150mm |
6900-3389 |
48x96x14'' |
| 6900-0128 |
1200x800x160mm |
|
|
| 6900-0161 |
1600x1000x180mm |
|
|
| 6900-0201 |
2000x1000x220mm |
|
|
| 6900-0202 |
2000x1500x250mm |
|
|
| 6900-0251 |
2500x1500x300mm |
|
|
| 6900-0302 |
3000x2000x400mm |
|
|
|
| |
| DIN876 grade 0 is standard, grade 00 and grade 1 are optional |
| Inch:GGG- G-463 grade A is standard, grade AA and grade B are optional |
| Made of granite, free from deterioration or dimensional change over time, minimal changes in dimension due to temperature changes |
| With certificate |
| Packed in wooden case |
| |
|
|
|
|
|
|
|
|
