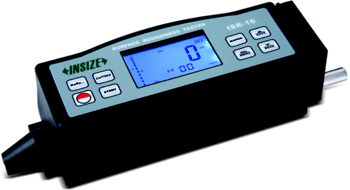

MODEL ISR-16 SURFACE ROUGHNESS TESTER
M
ODEL ISR-16
SURFACE ROUGHNESS TESTER
Meet ISO, DIN, ANSI and JIS
Four wave filtering methods : RC, PC-RC, GAUSS and D-P
Connected to PC via RS-232 interface
Memory for 7 groups of measuring results and measuring conditions for later use or transfer to PC
Technical specification
Display
LCDwith blue backlight
Parameters
Ra, Rz, Rq, Rt
Measuring range
Ra, Rq
0.005-16.00¦Ìm/0.020-629.9¦Ìin
Rz, Rt
0.020-160.0¦Ìm/0.078-6299¦Ìin
Accuracy
¡À10%
Repeatability
6%
Sensor
test principle
inductance type
radius of probe pin
5¦Ìm/200¦Ìin
material of probe pin
Diamond
measuring force of probe
4mN(0.4gf)
probe angle
90¡ã
vertical radius of guiding head
48mm/1.9''
Maximum stroke
17.5mm/0.7''
Sampling length£¨L£©
0.25mm / 0.8mm / 2.5mm
Evaluation length
Ln=(1- 5)L
Speed
sampling length = 0.25mm Vt=0.135mm/s
sampling length = 0.8mm Vt=0.5mm/s
sampling length = 2.5mm Vt=1mm/s
returning Vt=1mm/s
Resolution
0.001¦Ìm reading£¼10¦Ìm or 0.005¦Ìin (reading<10¦Ìin)
0.01¦Ìm 10¦Ìm¡Ü reading£¼100¦Ìm or 0.01¦Ìin (10¦Ìin¡Üreading<100¦Ìin)
0.1¦Ìm reading¡İ100¦Ìm 0.1¦Ìin (reading¡İ100¦Ìin)
Power supply
built-in rechargeable lithium battery
Operating conditions
temperature 0~50¡æ (32¡ãF-122¡ãF) humidity <80%RH
Dimension
140x52x48 mm
Weight
420g/14.8oz
Standard delivery
Option accessories
Main unit
1pc
Sensor
1pc
Standard test block
1pc
AC/DC adapter
1pc
Sensor protector
1pc
Adjust stand
1pc
Cable & software for RS232C
Sensor extend pole
Measuring stand
Manual
