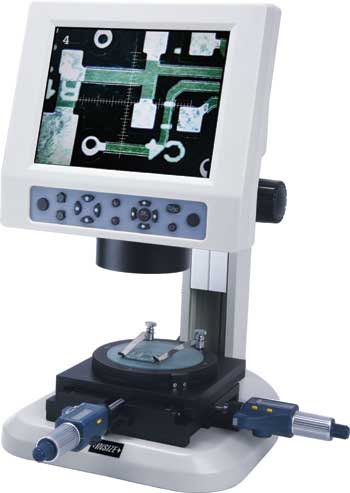

| MODEL ISM-DL120 LCD MEASURING MICROSCOPE |
| |
| Easy to take pictures and videos |
| Connect to PC and TV |
| Supplied with SD card (2G) |
| Five colours (green, red, blue, white, black) cross line, with 0.1mm graduation |
| Technical specification |
| Total magnification |
18.7-120X |
| Display screen |
dimension |
8.4 inch |
| display resolution |
800¡Á600 |
| memory card |
support SD/MMC |
| Working table |
diameter |
120mm/4.7'' |
| rotary range |
0-360¡ã |
| angle resolution |
0.2¡ã |
| X- axis travel |
25mm/1'' |
| Y- axis travel |
25mm/1'' |
| X-Y travel resolution |
0.001mm/0.00005" |
| measuring accuracy |
0.005mm/0.0002" |
| load |
8kg/17.6lbs |
| Working distance |
185mm/7.3" |
| Objective |
0.7X-4.5X |
| Illumination |
adjustable LED |
| Power supply |
AC 100-240V/50-60HZ |
|
| Standard delivery |
|
Optional accessories |
| Main unit |
1pc |
| Software disc |
1pc |
| 0.1mm rule |
1pc |
| SD card |
1pc |
| AV connecting cable |
1pc |
| USB cable |
1pc |
| AC/DC adapter |
1pc |
| Anti-dust cover |
1pc |
|
|
| Frosted glass plate |
| 0.5X auxiliary objective |
| 2X auxiliary objective |
|
| |
|
|
|
|
