Metalurjik Mikroskoplar Model Ism-M600 |
|
|
 |
|
|
|
|
|
| |

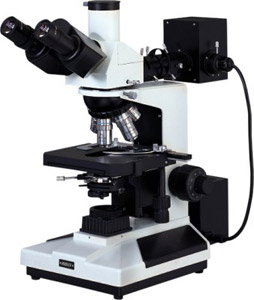

| MODEL ISM-M600 METALLURGICAL MICROSCOPE |
| |
| Technical specification |
| Eyepiece |
WF10X |
| Objective |
PL5X, PL10X, PL20X, PL40X, PL60X |
| Pupil distance |
53-75mm (2.1-3.0") |
| Fine focus adjustment |
0.002mm graduation |
| Illumination |
incident light:
brightness control, with filters (blue, green, frosted) and polarizer, viewing
field adjustment, diaphragm adjustment |
transmitted light:
brightness control, with filters (blue, green, frosted), polarizer and condenser |
| Stage |
double layer mechanical with sample clamp |
| size: 160x140mm (6.3x5.5") |
| travel: 75x50mm(3.0x2.0") with 0.1mm graduation |
| Power supply |
AC 220V 50Hz(standard) |
| AC 110V 60Hz(option) |
|
| Standard delivery |
|
Optional accessories |
| Main unit |
1pc |
| Trinocular viewing head with polarizer |
1pc |
| Transmitted light house |
1pc |
| Transmitted light filter (blue, green, frosted) |
1pc each |
| Transmitted light polarizer |
1pc |
| Transmitted light condenser |
1pc |
| Reflected light house |
1pc |
| Reflected polarizer |
1pc |
| Spare fuse |
1pc |
| Spare bulb |
2pcs |
| Anti-dust cover |
1pc |
|
|
| Eyepiece |
WF16X, dividing 10X (0.1mm/div.) |
| Objective |
PL50X, PL80X, PL100X |
| Digital camera |
ISM-D300B, D500 |
|
| |
| |
|
|
|
|
|
|
