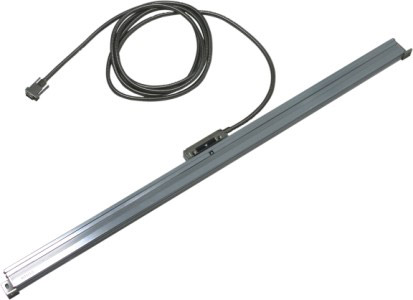

| LINEAR SCALE |
| |
| Technical specification |
Model
|
Resolution |
Speed (m/min) |
Section size AxB |
| ISL-A1 |
1¦Ìm/40¦Ìin |
50 |
21x61.5mm (0.83x2.42") |
| ISL-A5 |
5¦Ìm/200¦Ìin |
90 |
21x61.5mm (0.83x2.42") |
| ISL-A05 |
0.5¦Ìm/20¦Ìin |
30 |
21x61.5mm (0.83x2.42") |
| ISL-B1 |
1¦Ìm/40¦Ìin |
60 |
29x66.8mm (1.14x2.63") |
| ISL-B5 |
5¦Ìm/200¦Ìin |
60 |
29x66.8mm (1.14x2.63") |
| Scale grating pitch |
20¦Ìm |
| Scale reference point pitch |
50mm |
| Accuracy |
¡À(5+5L/1000)¦Ìm L is the effective range in mm |
| Working temperature |
0¡æ-40¡æ(32¨H-104¨H) |
|
| Standard delivery |
| Main unit |
1pc |
| ¡äL¡¯ shape support |
1pc |
| Anti-dust cover |
1pc |
| Flat base |
1pc(for scales¡İ1500mm) |
| Fixing screws |
1set |
|
| |
Code |
Effective range
|
| ISL-A1 |
ISL-A5 |
ISL-A05 |
ISL-B1 |
ISL-B5 |
| ISL-A1-50 |
ISL-A5-50 |
ISL-A05-50 |
ISL-B1-50 |
ISL-B5-50 |
50mm/2" |
| ISL-A1-100 |
ISL-A5-100 |
ISL-A05-100 |
ISL-B1-100 |
ISL-B5-100 |
100mm/4" |
| ISL-A1-150 |
ISL-A5-150 |
ISL-A05-150 |
ISL-B1-150 |
ISL-B5-150 |
150mm/6" |
| ISL-A1-200 |
ISL-A5-200 |
ISL-A05-200 |
ISL-B1-200 |
ISL-B5-200 |
200mm/8" |
| ISL-A1-250 |
ISL-A5-250 |
ISL-A05-250 |
ISL-B1-250 |
ISL-B5-250 |
250mm/10" |
| ISL-A1-300 |
ISL-A5-300 |
ISL-A05-300 |
ISL-B1-300 |
ISL-B5-300 |
300mm/12" |
| ISL-A1-350 |
ISL-A5-350 |
ISL-A05-350 |
ISL-B1-350 |
ISL-B5-350 |
350mm/14" |
| ISL-A1-400 |
ISL-A5-400 |
ISL-A05-400 |
ISL-B1-400 |
ISL-B5-400 |
400mm/16" |
| ISL-A1-450 |
ISL-A5-450 |
ISL-A05-450 |
ISL-B1-450 |
ISL-B5-450 |
450mm/18" |
| ISL-A1-500 |
ISL-A5-500 |
ISL-A05-500 |
ISL-B1-500 |
ISL-B5-500 |
500mm/20" |
| ISL-A1-550 |
ISL-A5-550 |
ISL-A05-550 |
ISL-B1-550 |
ISL-B5-550 |
550mm/22" |
| ISL-A1-600 |
ISL-A5-600 |
ISL-A05-600 |
ISL-B1-600 |
ISL-B5-600 |
600mm/24" |
| ISL-A1-650 |
ISL-A5-650 |
ISL-A05-650 |
ISL-B1-650 |
ISL-B5-650 |
650mm/26" |
| ISL-A1-700 |
ISL-A5-700 |
ISL-A05-700 |
ISL-B1-700 |
ISL-B5-700 |
700mm/28" |
| ISL-A1-750 |
ISL-A5-750 |
ISL-A05-750 |
ISL-B1-750 |
ISL-B5-750 |
750mm/30" |
| ISL-A1-800 |
ISL-A5-800 |
ISL-A05-800 |
ISL-B1-800 |
ISL-B5-800 |
800mm/32" |
| ISL-A1-850 |
ISL-A5-850 |
ISL-A05-850 |
ISL-B1-850 |
ISL-B5-850 |
850mm/34" |
| ISL-A1-900 |
ISL-A5-900 |
ISL-A05-900 |
ISL-B1-900 |
ISL-B5-900 |
900mm/36" |
| ISL-A1-950 |
ISL-A5-950 |
ISL-A05-950 |
ISL-B1-950 |
ISL-B5-950 |
950mm/38" |
| ISL-A1-1000 |
ISL-A5-1000 |
ISL-A05-1000 |
ISL-B1-1000 |
ISL-B5-1000 |
1000mm/40" |
| |
ISL-B1-1100 |
ISL-B5-1100 |
1100mm/44" |
| ISL-B1-1200 |
ISL-B5-1200 |
1200mm/48" |
| ISL-B1-1300 |
ISL-B5-1300 |
1300mm/52" |
| ISL-B1-1400 |
ISL-B5-1400 |
1400mm/56" |
| ISL-B1-1500 |
ISL-B5-1500 |
1500mm/60" |
| ISL-B1-1600 |
ISL-B5-1600 |
1600mm/64" |
| ISL-B1-1700 |
ISL-B5-1700 |
1700mm/68" |
| ISL-B1-1800 |
ISL-B5-1800 |
1800mm/72" |
| ISL-B1-1900 |
ISL-B5-1900 |
1900mm/76" |
| ISL-B1-2000 |
ISL-B5-2000 |
2000mm/80" |
| ISL-B1-2200 |
ISL-B5-2200 |
2200mm/88" |
| ISL-B1-2400 |
ISL-B5-2400 |
2400mm/96" |
| ISL-B1-2600 |
ISL-B5-2600 |
2600mm/104" |
| ISL-B1-2800 |
ISL-B5-2800 |
2800mm/112" |
| ISL-B1-3000 |
ISL-B5-3000 |
3000mm/120" |
|
|
|
|
