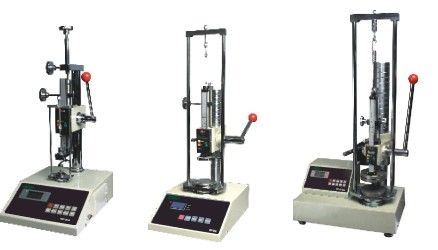

| MODEL ISF-S10~20 |
MODEL ISF-S50~500 |
MODEL ISF-S1000~5000 |
|
|
| |
| DIGITAL SPRING TESTER |
| |
| For pull and push test of springs |
| Repeat test for large quantity of springs |
| 10 test result memory, automatic mean value |
| Unit in N, kgf and lbf |
| Catch the peak value of test |
| Catch the peak value and show for 1-10 seconds(adjustable), then automatically release and ready for next peak value |
| Compare : initial input of hight and low limit enables the device to judge the value as GO (green light)/NG(red light and/or buzz) |
| Automatic power off: 1-60 minutes(adjustable) |
| Data output: RS232 |
| Built-inl printer: print the maximum, minimum and mean value, make GO and NG judgment |
| Technical specification |
Model |
ISF-S10 |
ISF-S20 |
ISF-S50 |
ISF-S100 |
ISF-S200 |
ISF-S500 |
ISF-S1000 |
ISF-S2000 |
ISF-S5000 |
| Max.working load |
10N |
20N |
50N |
100N |
200N |
500 N |
1000N |
2000N |
5000N |
| Load resolution |
0.001N |
0.002N |
0.01N |
0.02N |
0.05N |
0.1N |
0.2N |
0.5N |
1N |
| Test travel |
70mm/2.8'' |
95mm/3.7'' |
150mm/5.9'' |
| Distortion resolution |
0.01mm/0.0005'' |
| Platen diameter |
34mm/1.3'' |
49mm/1.9'' |
108mm/4.3'' |
| Max. spring free length |
70mm/2.8'' |
95mm/3.7'' |
200mm/7.9'' |
| Accuracy |
¡À 1 % |
|
| Standard delivery |
| Main unit |
1pc |
| Built-in printer |
1pc |
| Wrench |
1pc |
| Power cable |
1pc |
|
|
