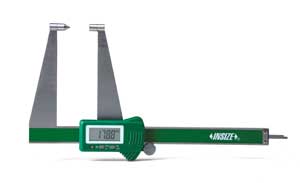

| ELECTRONIC DIGITAL DISC BRAKE GAGE |
| |
|
| |
| To measure the thickness of disc brake |
| With depth measuring rod |
| Range 0-125mm/0-5", resolution 0.01mm/0.0005" |
| Measuring depth 91mm/3.6" |
| With one pointed anvil and one flat anvil |
| Buttons:zero,on/off,inch/mm |
| Battery SR44, with one spare battery |
| Hardened stainless steel construction |
| Data output |
| Packed in blow mould case |
| |
|
|
|
|
|
|
|
| |
| |
|
|
| ELECTRONIC DIGITAL DISC BRAKE GAGE |
| |
|
| |
| To check the thickness of disc brake |
| With internal measuring jaws |
| Range 0-150mm/0-6", resolution 0.01mm/0.0005" |
| Measuring depth 64mm/2.5" of lower jaws |
| Buttons:zero,on/off,inch/mm |
| Battery SR44, with one spare battery |
| Hardened stainless steel construction |
| Data output |
| Packed in blow mould case |
| |
|
| |
|
|
|
|
|
| |
| |
|
|

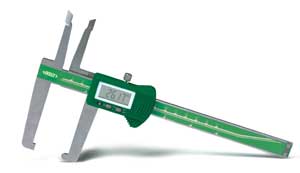

| ELECTRONIC DIGITAL DISC AND DRUM BRAKE GAGE |
| |
|
| |
| Lower jaws to check the thickness of disc brake, |
| measuring depth 61mm/2.4" |
| Upper jaws to check the diameter of drum brake, |
| measuring depth 46mm/1.8" |
| Range 0-300mm/0-12", resolution 0.01mm/0.0005" |
| Buttons:zero,on/off,inch/mm |
| Battery SR44, with one spare battery |
| Hardened stainless steel construction |
| Data output |
| Packed in blow mould case |
| |
|
|
|
|
|
|
| |
| |
|
|

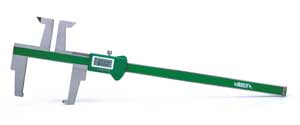

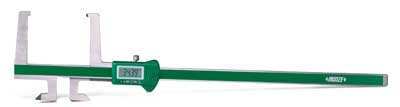

| ELECTRONIC DIGITAL DISC AND DRUM BRAKE GAGE |
| |
|
| |
| Patented |
| Upper jaws to check the thickness of disc brake, |
| measuring depth 64mm/2.5" |
| Lower jaws to check the diameter of drum brake, |
| measuring depth 25.4mm/1" |
| Wide shoulders to rest on edge of drum to |
| ensure accurate measurement |
| Range 0-350mm/0-13.9", resolution 0.01mm/0.0005" |
| Buttons:zero,on/off,inch/mm |
| Battery SR44, with one spare battery |
| Hardened stainless steel construction |
| Data output |
| Packed in blow mould case |
| |
|
|
|
|
|
|
| |
| |
|
|
| DISC BRAKE VERNIER CALIPER |
| |
| Code |
Range |
Measuring depth |
| 1272-60 |
0-60mm |
55mm |
| 1272-601 |
0-60mm |
80mm |
| 1272-90 |
0-90mm |
120mm |
|
| |
| Graduation: 0.1mm |
| For disk brake thickness |
| Made of stainless steel, satin chrome plated reading surface |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|

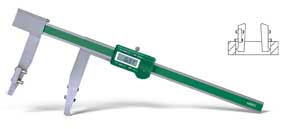

| ELECTRONIC DRUM BRAKE CALIPER |
| |
| Code |
Range |
Measuring depth |
| 1190-300 |
20-300mm/0.8-12" |
85mm/3.3" |
| 1190-425 |
20-425mm/0.8-16.7" |
110mm/4.3" |
| 1190-500 |
20-500mm/0.8-20" |
115mm/4.5" |
|
| |
| Resolution: 0.01mm/0.0005" |
| Measure drum brake wear |
| Moving pins to adjust measuring depth |
| Supplied with calibration block |
| Battery SR44, with one spare battery |
| Hardened stainless steel construction |
| Data output |
| Packed in wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| DRUM BRAKE GAGE |
| |
|
| |
| To check the diameter of drum brake |
| Range 150-560mm/6-22", graduation 1mm and 1/32" |
| Hardened and pointed tips |
| Stainless steel construction, satin chrome plated scale |
| Packed in blow mould case |
| |
|
|
|
|
|
|
