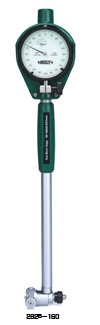

| PRECISION DIAL BORE GAGE |
| |
| Code |
Range |
Depth |
Dial indicator bezel |

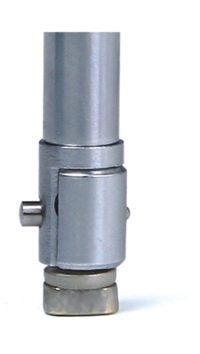

Anvil type |
| 2825-10 |
6-10mm |
40mm |
58mm |
A |
| 2825-18 |
10-18mm |
100mm |
58mm |
B |
| 2825-35 |
18-35mm |
150mm |
58mm |
C |
| 2825-50 |
35-50mm |
150mm |
58mm |
D |
| 2825-100 |
50-100mm |
150mm |
58mm |
D |
| 2825-160 |
50-160mm |
150mm |
58mm |
D |
| 2825-250 |
160-250mm |
250mm |
58mm |
D |
| 2825-450 |
250-450mm |
250mm |
58mm |
D |
| Code |
Range |
Depth |
Dial indicator bezel |
Anvil type |
| 2826-04 |
0.24-0.4" |
1.57" |
2.28" |
A |
| 2826-07 |
0.4-0.7" |
4" |
2.28" |
B |
| 2826-15 |
0.7-1.5" |
6" |
2.28" |
C |
| 2826-24 |
1.4-2.4" |
6" |
2.28" |
D |
| 2826-4 |
2-4" |
6" |
2.28" |
D |
| 2826-6 |
2-6" |
6" |
2.28" |
D |
| 2826-10 |
6-10" |
16" |
2.28" |
D |
| 2826-16 |
10-16" |
16" |
2.28" |
D |
|
| |
Dial indicator graduation: metric 0.001mm,
inch 0.0001" |
Dial indicator range: metric 0-1mm
inch 0-0.05" |
| Shock-proof dial indicator |
| Ceramic moving tip and anvil except moving tip |
| and anvil of 6-10mm/0.24-0.4", moving tip of 10-18mm/0.4-0.7", |
| moving tip of 18-35mm/0.7-1.5" |
| Packed in blow mould case or wooden box |
| |
|
|
|
| |
| |
| |
|
|
|
|
|
