Özel Kumpaslar (
1 |
2 |
3 |
4 | 5 ) |
|
|
 |
|
| |
|
|
|

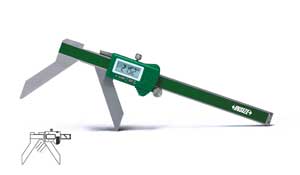

ELECTRONIC ARC RADIUS CALIPER |
| |
|
Code |
Range |
|
1189-150 |
3-150mm/0.12-6" |
|
1189-200 |
3-200mm/0.12-8" |
|
| |
|
Measure the radius of arc less than
half round |
|
Resolution: 0.01mm/0.0005" |
|
Buttons: zero, power on/off, inch/mm |
|
Battery SR44, with one spare battery |
|
Data output |
|
Hardened stainless steel
construction |
| Packed in
plastic box or wooden box |
|
| |
| |
|
|
|
|
|
|
|
|
| |
| |
|
|
|

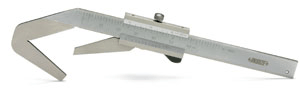

ARC RADIUS VERNIER CALIPER |
| |
|
Code |
Range |
|
1289-150 |
3-150mm/0.12-6" |
|
1289-200 |
3-200mm/0.12-8" |
|
| |
| Measure
the radius of arc less than half round |
|
Graduation: 0.05mm/1/128" |
| optional graduations:
0.02mm, 0.05mm, 0.02mm/0.001'' |
|
Monoblock, made of hardened stainless
steel, stain chrome plated reading
surface |
| Packed in
plastic box or wooden box |
| |
|
|
| |
| |
|
|
|
| |
| |
|
|
|
ELECTRONIC GEAR TOOTH CALIPER |
| |
|
Code |
Range |
|
1181-M30 |
M1-30mm/25-0.8TPI |
|
1181-M50 |
M5-50mm/5-0.5TPI |
|
| |
|
Resolution: 0.01mm/0.0005" |
|
The vertical scale measures the
depth of teeth from the top to the
pitch line |
|
The horizontal scale measures the
thickness of teeth in the pitch line |
|
Carbide tips, with fine adjustment |
|
Buttons: zero, power on/off, inch/mm |
|
Battery SR44, with one spare
battery, automatic power off |
|
Data output |
|
Hardened stainless steel
construction |
|
Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
|
| |
| |
|
|
|
ELECTRONIC V-ANVIL CALIPER |
| |
|
Code |
Range |
Flutes |
|
1174 |
4-40mm/0.16-1.6" |
3 |
|
1173 |
1-40mm/0.04-1.6" |
5 |
|
| |
|
Measure diameter of cylinder(such as
taps, reamers and end mills) with
odd number of flutes |
|
Resolution: 0.01mm/0.0005" |
|
Buttons: zero, power on/off, inch/mm |
|
Supplied with calibration rod |
|
Battery SR44, with one spare battery |
|
Data output |
|
Stainless steel construction |
|
Packed in plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|
V-ANVIL VERNIER CALIPER |
|
Code |
Range |
Flutes |
|
1273-40 |
1-40mm/0.04-1.6" |
5 |
|
1274-40 |
4-40mm/0.16-1.6" |
3 |
|
|
Measure diameter of cylinder (such
as taps, reamers and end mills )
wiyh odd number of flutes |
|
Graduation: 0.05mm/1/128", optional
graduations: 0.02mm, 0.05mm,
0.02mm/0.001'' |
| Made of
hardened stainless steel, satin
chrome plated reading surface |
| Packed in
plastic box |
| |
|
|
|
|
|
|
|
