Buradasınız:Ölçü Aletleri >> Kumpaslar >>
Mekanik Kumpaslar |
 |
|
Mekanik Kumpaslar ( 1 |
2 |
3 |
4 ) |
|
|
 |
| |
| |
|
|
|
MINI VERNIER CALIPER |
| |
Code |
Range |
Graduation |
|
1204-70 |
0-70mm |
0.05mm |
|
| |
| Meet DIN862,
monoblock, made of hardened stainless
steel, satin chrome plated reading
surface |
| Packed in leathery
pouch |
| |
|
|
|
|
|
| |
| |
|
|
|
VERNIER CALIPER |
| |
Code |
Range |
Graduation |
|
1205-100 |
0-100mm/0-4" |
0.05mm/1/128" |
|
1205-150 |
0-150mm/0-6" |
0.05mm/1/128" |
|
1205-200 |
0-200mm/0-8" |
0.05mm/1/128" |
|
1205-300 |
0-300mm/0-12" |
0.05mm/1/128" |
|
| |
| Optional
graduations:
0.02mm,0.02mm/0.001", 0.05mm |
|
With thumb knob |
| Meet DIN862,
monoblock, made of hardened
stainless steel, satin chrome plated
reading surface |
|
Round depth rod is optional |
| Titanium
platedbeam is optional |
|
Packed in leathery pouch or plastic
box |
| |
|
|
|
|
|
|
| |
| |
|
|
|
VERNIER CALIPER |
Code |
Range |
Graduation |
|
1206-150 |
0-150mm/0-6" |
0.05mm/1/128" |
|
1206-200 |
0-200mm/0-8" |
0.05mm/1/128" |
|
1206-300 |
0-300mm/0-12" |
0.05mm/1/128" |
|
| |
|
Optional graduations: 0.02mm,
0.02mm/0.001", 0.05mm |
|
With thumb knob |
| Meet DIN862,
monoblock, made of hardened
stainless steel, satin chrome plated
reading surface |
| Packed in
plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|
VERNIER CALIPER |
| |
Code |
Range |
Graduation |
|
1222-150 |
0-150mm/0-6" |
0.05mm/1/128" |
|
1222-200 |
0-200mm/0-8" |
0.05mm/1/128" |
|
1222-300 |
0-300mm/0-12" |
0.05mm/1/128" |
|
| |
| Optional
graduations: 0.02mm, 0.02mm/0.001",
0.05mm |
| With auto clamp |
| Meet DIN862,
monoblock, made of hardened
stainless steel, satin chrome plated
reading surface |
| Packed in
plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|

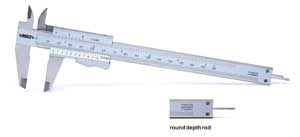

VERNIER CALIPER |
| |
Code |
Range |
Graduation |
|
1223-150 |
0-150mm/0-6" |
0.05mm/1/128" |
|
1223-200 |
0-200mm/0-8" |
0.05mm/1/128" |
|
1223-300 |
0-300mm/0-12" |
0.05mm/1/128" |
|
| |
| Optional
graduations: 0.02mm, 0.02mm/0.001",
0.05mm |
| With auto
clamp |
| Meet DIN862,
monoblock, made of hardened
stainless steel, satin chrome plated
reading surface |
| Round depth
rod is optional |
| Packed in
plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|

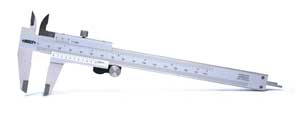

VERNIER CALIPER |
| |
|
Code |
Range |
Graduation |
|
1225-150 |
0-150mm/0-6" |
0.05mm/1/128" |
|
1225-200 |
0-200mm/0-8" |
0.05mm/1/128" |
|
1225-300 |
0-300mm/0-12" |
0.05mm/1/128" |
|
| |
Optional
graduations: 0.02mm,0.02mm/0.001",
0.05mm
|
| With thumb
wheel |
| Meet DIN862,
monoblock, made of hardened
stainless steel, satin chrome plated
reading surface |
| Packed in
plastic box |
| |
|
|
|
|
|
|
| |
| |
|
|
|

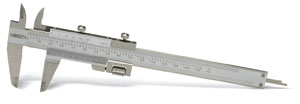

VERNIER CALIPER |
|
Code |
Range |
Graduation |
|
1233-130 |
0-130mm/0-5" |
0.02mm/0.001" |
|
1233-180 |
0-180mm/0-7" |
0.02mm/0.001" |
|
1233-280 |
0-280mm/0-11" |
0.02mm/0.001" |
|
| Optional
graduations: 0.02mm,0.05mm/1/128", 0.05mm |
| With fine adjustment |
| Meet DIN862,
monoblock, made of hardened stainless steel,
satin chrome plated reading surface |
| Packed in plastic
box |
| |
|
|
|
|
|
|
|
