Mekanik Kumpaslar (
1 |
2 | 3 |
4 ) |
|
|
 |
|
|
|
|
|
| |
|
|
|

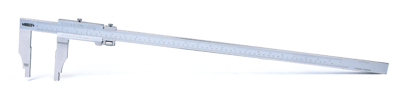

VERNIER CALIPER |
| |
|
Code |
Range |
Standard
jaw length |
Optional
jaw length |
| 1208-284 |
0-200mm/0-8" |
80mm/3.1" |
100mm/3.9" |
| 1208-184 |
0-250mm/0-10" |
80mm/3.1" |
100mm/3.9" |
| 1208-394 |
0-300mm/0-12" |
90mm/3.5" |
125mm/4.9",150mm/5.9" |
| 1208-414 |
0-400mm/0-16" |
100mm/3.9" |
150mm/5.9",200mm/7.9" |
| 1208-514 |
0-500mm/0-20" |
100mm/3.9" |
150mm/5.9",200mm/7.9",250mm/9.8" |
| 1208-614 |
0-600mm/0-24" |
100mm/3.9" |
150mm/5.9",200mm/7.9",250mm/9.8",300mm/11.8" |
| 1208-824 |
0-800mm/0-32" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
| 1208-1024 |
0-1000mm/0-40" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
| 1208-1524 |
0-1500mm/0-60" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
| 1208-2024 |
0-2000mm/0-80" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
| 1208-2524 |
0-2500mm/0-100" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
| 1208-3024 |
0-3000mm/0-120" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
|
| |
| Standard graduation:
0.05mm/1/128", optional graduations: 0.02mm,
0.02mm/0.001", 0.05mm |
| The round faces of
lower jaw are ideal for accurate inside measurement |
| With fine adjustment |
| Meet DIN862, monoblock,
made of hardened stainles steel, satin chrome plated
reading surface |
| Packed in wooden box |
|
| |
|
|
|
|
|
|
|
|
| |
|
|
|

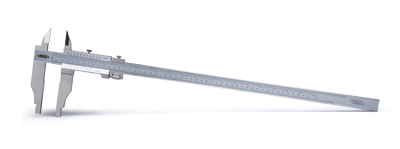

VERNIER CALIPER |
| |
|
Code |
Range |
Standard lower jaw length |
Optional
lower jaw length |
Upper
jaw length |
|
1207-364 |
0-300mm/0-12" |
60mm/2.4" |
90mm/3.5" |
36.5mm/1.4" |
|
1207-514 |
0-500mm/0-20" |
100mm/3.9" |
150mm/5.9",200mm/7.9" |
55mm/2.2" |
|
1207-614 |
0-600mm/0-24" |
100mm/3.9" |
150mm/5.9",200mm/7.9:" |
55mm/2.2" |
|
1207-824 |
0-800mm/0-32" |
150mm/5.9" |
200mm/7.9",250mm/9.8" |
64mm/2.5" |
|
1207-1024 |
0-1000mm/0-40" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
64mm/2.5" |
|
1207-1524 |
0-1500mm/0-60" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
64mm/2.5" |
|
1207-2024 |
0-2000mm/0-80" |
150mm/5.9" |
200mm/7.9",250mm/9.8",300mm/11.8" |
73mm/2.9" |
|
| |
| Standard graduation: 0.05mm/1/128",
optional graduations: 0.02mm, 0.02mm/0.001", 0.05mm |
| The round faces of lower jaw are
ideal for accurate inside measurement |
| With fine adjustment |
| Meet DIN862, monoblock, made of
hardened stainless steel, satin chrome plated reading
surface |
| Packed in wooden box |
| |
|
|
|
|
|
|
|
|
| |
|
|
|

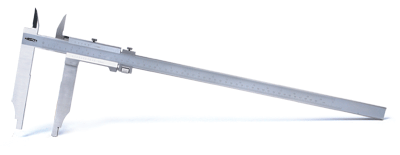

VERNIER CALIPER |
| |
|
Code |
Range |
Standard
lower jaw length |
Optional
lower jaw length |
Upper
jaw length |
| 1236-364 |
0-300mm/0-12" |
60mm/2.4" |
90mm/3.5" |
22mm/0.9" |
|
1236-514 |
0-500mm/0-20" |
100mm/3.9" |
150mm/5.9" |
40mm/1.6" |
| 1236-614 |
0-600mm/0-24" |
100mm/3.9" |
150mm/5.9" |
40mm/1.6" |
| 1236-824 |
0-800mm/0-32" |
150mm/5.9' |
200mm/7.9" |
47mm/1.9" |
| 1236-1024 |
0-1000mm/0-40" |
150mm/5.9 |
200mm/7.9" |
47mm/1.9" |
|
| |
| Standard graduation:
0.05mm/1/128", optional graduations: 0.02mm,
0.02mm/0.001", 0.05mm |
| The round faces of
lower jaw are ideal for accurate inside measurement |
| With fine adjustment |
| Meet DIN862,
monoblock, made of hardened stainless steel, satin
chrome plated reading surface |
| Packed in wooden box |
| |
|
|
|
|
|
|
|
|
| |
|
|
| PARALLAX FREE
VERNIER CALIPER |
| |
| Code |
Range |
Lower
jaw length |
|
1218-300 |
0-300mm/0-12" |
90mm/3.5" |
|
1218-500 |
0-500mm/0-20" |
150mm/5.9" |
|
1218-750 |
0-750mm/0-30" |
150mm/5.9" |
|
1218-1000 |
0-1000mm/0-40" |
150mm/5.9" |
|
| |
| Standard graduation:
0.05mm/1/128" (optional: 0.05mm ) |
| The round
faces of lower jaw are ideal for accurate inside
measurement |
| With fine adjustment |
| Meet DIN 862,
monoblock, made of hardened stainless steel, satin
chrome plated reading surface |
| Packed in wooden box |
| |
|
| |
|
|
