Mekanik Kumpaslar(
1 |
2 |
3 | 4 ) |
|
|
 |
|
|
|
|
|
| |
|
|

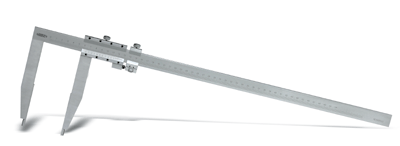

| VERNIER CALIPER |
| |
| Code |
Code |
Range |
Jaw
length |
|
1214-300 |
1211-12 |
0-300mm/0-12" |
75mm/3" |
|
1214-450 |
1211-18 |
0-450mm/0-18" |
100mm/3.9" |
|
1214-500 |
1211-20 |
0-500mm/0-20" |
100mm/3.9" |
|
1214-600 |
1211-24 |
0-600mm/0-24" |
100mm/3.9" |
|
1214-1000 |
1211-40 |
0-1000mm/0-40" |
140mm/5.5" |
|
1214-1500 |
1211-60 |
0-1500mm/0-60" |
180mm/7.1" |
|
| |
| Standard graduation: 0.02mm/0.001",
optional graduations: 0.02mm, 0.05mm, 0.05mm/1/128",
0.001" |
| Series 1214: mm
graduation on lower scale and inch on upper scale,10mm
or 20mm width of internal measuring jaws |
| Series 1211:inch
graduation on lower scale and mm on upper scale, 1/2" or
1"width of internal measuring jaws
|
| The round faces of
lower jaw are ideal for accurate inside measurement |
| With fine adjustment |
| Meet DIN862, made of hardened
stainless steel, satin chrome plated reading surface |
| Packed in wooden box |
| |
|
|
|
|
|
|
|
|
|
| |
|
|
| VERNIER CALIPER |
| |
| Code |
Code |
Range |
Standard jaw length |
Optional jaw length |
| 1215-392 |
1216-1222
|
0-300mm/0-12" |
90mm/3.5" |
125mm/4.9", 150mm/5.9" |
|
1215-412 |
1216-1622 |
0-400mm/0-16" |
100mm/3.9" |
150mm/5.9", 200mm/7.9" |
|
1215-522 |
1216-2022 |
0-500mm/0-20" |
150mm/5.9" |
200mm/7.9", 250mm/9.8" |
| 1215-622 |
1216-2422 |
0-600mm/0-24" |
150mm/5.9" |
200mm/7.9", 250mm/9.8", 300mm/11.8" |
|
1215-822 |
1216-3222 |
0-800mm/0-32" |
150mm/5.9" |
200mm/7.9", 250mm/9.8", 300mm/11.8" |
|
1215-1022 |
1216-4022 |
0-1000mm/0-40" |
150mm/5.9" |
200mm/7.9", 250mm/9.8", 300mm/11.8" |
| 1215-1522 |
1216-6022 |
0-1500mm/0-60" |
150mm/5.9" |
200mm/7.9", 250mm/9.8", 300mm/11.8" |
| 1215-2022 |
1216-8022 |
0-2000mm/0-80" |
150mm/5.9" |
200mm/7.9",
250mm/9.8", 300mm/11.8" |
| 1215-2522 |
1216-1022 |
0-250mm/0-100" |
150mm/5.9" |
200mm/7.9",
250mm/9.8", 300mm/11.8" |
| 1215-3022 |
1216-1202 |
0-3000mm/0-120" |
150mm/5.9" |
200mm/7.9",
250mm/9.8", 300mm/11.8" |
|
| |
| Standard graduation: 0.02mm/0.001",
optional graduations: 0.02mm, 0.05mm, 0.05mm/1/128",
0.001" |
| Series 1215:
mmgraduation on lower scale and inch on upper
scale,10mmor20mmwidth of internal measuring jaws |
| Series 1216: inch
graduation on lower scale andmmon upper scale, 1/2" or
1" width of internal measuring jaws |
| Other jaw length can bemadeupon
request |
| The round faces of lower jaw ideal
for accurate inside measurement |
| With fine adjustment |
| Meet DIN862,madeof hardened stainless
steel, satin chrome plated reading surface |
| Packed in wooden box |
| |
|
|
