| CONTACT POINT FOR DIAL TEST INDICATOR |
| |
| Code |
Material |
L(mm) |
For dial test indicator |
Ball |
| 6285-1 |
Steel |
17.3 |
2380-08
2381-08 |
¦µ1mm ball |
| 6285-2 |
Carbide |
17.3 |
¦µ2mm ball |
| 6285-3 |
Carbide |
17.3 |
¦µ3mm ball |
| 6285-4 |
Ruby |
17.3 |
¦µ2mm ball |
|
| 6286-1 |
Steel |
0.65" |
2380-31
2381-31
2380-35
2381-35 |
¦µ1mm ball |
| 6286-2 |
Carbide |
0.65" |
¦µ2mm ball |
| 6286-3 |
Carbide |
0.65" |
¦µ3mm ball |
| 6286-4 |
Ruby |
0.65" |
¦µ2mm ball |
|
| 6287-1 |
Steel |
14.7mm/0.58" |
2380-02
2381-02
2380-301
2381-301 |
¦µ1mm ball |
| 6287-2 |
Carbide |
14.7mm/0.58" |
¦µ2mm ball |
| 6287-3 |
Carbide |
14.7mm/0.58" |
¦µ3mm ball |
| 6287-4 |
Ruby |
14.7mm/0.58" |
¦µ2mm ball |
|
| |
| |
|
|
|
|
|
|
| |
| |
|
|
|
| TEST INDICATOR HOLDER |
| |
| Code |
Size A |
Size B |

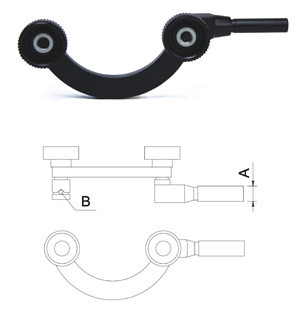

| 6291-1 |
¦µ8mm |
¦µ4mm |
| 6291-2 |
¦µ1/4" |
5/32" DIA. |
|
| |
|
|
|
|
|
|
| |
|
|
|
| TEST INDICATOR HOLDER |
| |
| Code |
Stemsection |
Stem length |
Clamp holes |

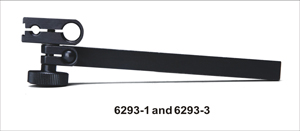

| 6293-1 |
9x9mm |
100mm |
¦µ4mm and ¦µ8mm |

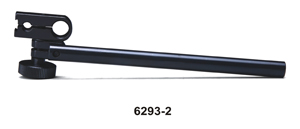

| 6293-2 |
¦µ8mm |
115mm |
¦µ4mm and ¦µ8mm |
| 6293-3 |
0.25x0.5" |
4'' |
5/32" DIA and 3/8" DIA. |
|
| |
|
|
|
|
|
|
| |
| |
|
|
| UNIVERSAL TEST INDICATOR HOLDER |
| |
| Code |
Stem |
| 6293-4 |
¦µ8mm |
| 6293-5 |
0.25" DIA. |
|
| |
| Set the indicator at a desired position |
| Packed in plastic pouch |
| |
|
|
|
| |
|
|
|
