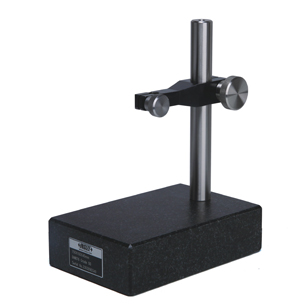

| MEASURING TABLE |
| |
| Code |
Base |
Column |
| 6850-150 |
150X100x40mm/5.9x3.9x1.6" |
¦µ18x150mm/0.7x5.9" |
| 6850-200 |
200x150x50mm/7.8x5.9x2" |
¦µ25x270mm/1x10.6" |
| 6850-300 |
300x200x50mm/11.8x7.8x2" |
¦µ35x300mm/1.4x11.8" |
| 6850-400 |
400x250x70mm/15.7x9.8x2.8" |
¦µ35x300mm/1.4x11.8" |
|
| |
| Granite base flatness DIN876 grade 00 |
| Clamp hole 3/8" DIA. with ¦µ8mm sleeve |
| Packed in aluminum box |
| |
|
|
|
|
|
|
| |
|
| |
| |
|
|

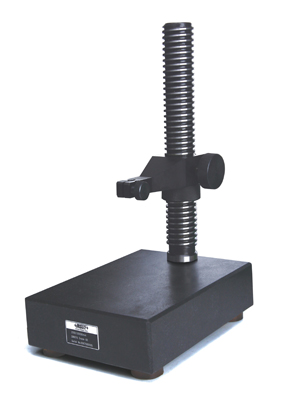

| MEASURING TABLE |
| |
| Code |
Base |
Column |
| 6855-150 |
150X100x40mm/5.9x3.9x1.6" |
¦µ18x100mm/0.7x3.9" |
| 6855-200 |
200x150x50mm/7.8x5.9x2" |
¦µ35x250mm/1.4x9.8" |
| 6855-300 |
300x200x50mm/11.8x7.8x2" |
¦µ35x300mm/1.4x11.8" |
| 6855-400 |
400x250x70mm/15.7x9.8x2.8" |
¦µ35x300mm/1.4x11.8" |
|
| |
| Granite base flatness DIN876 grade 00 |
| Threaded column for fine adjustment |
| Clamp hole 3/8"DIA.with ¦µ8mm sleeve |
| Packed in aluminum box |
| |
|
|
|
|
|
|
| |
| |
|
|

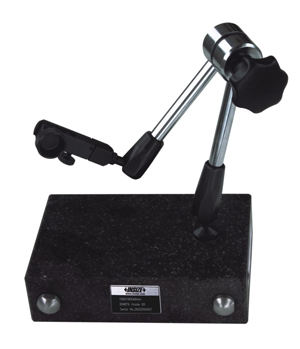

| MEASURING TABLE |
| |
| Code |
Base |
| 6856-150 |
150X100x40mm/5.9x3.9x1.6" |
| 6856-200 |
200x150x50mm/7.8x5.9x2" |
| 6856-300 |
300x200x50mm/11.8x7.8x2" |
| 6856-400 |
400x250x70mm/15.7x9.8x2.8" |
|
| |
| Granite base flatness DIN876 grade 00 |
| With two stops on the side of base |
| Dovetail groove for test indicator |
| Clamp hole 3/8" DIA. with ¦µ8mm sleeve |
| With fine adjustment |
| Packed in aluminum box |
| |
|
|
|
|
|
|
| |
| |
|
|
| MEASURING TABLE |
| |
|
| |
| 160mm/6.3" maximum height capacity |
| Granite base:260x150x50mm(10.2x5.9x2"), flatness DIN876 grade00 |
| Column:¦µ35mm/1.4" with precision threaded spindle and |
| graduation (graduation 0.01mm) |
| Assistant stem ¦µ20x200mm(0.8x7.9") |
| Clamp hole 3/8" DIA.with ¦µ8mm sleeve |
| Packed in wooden box |
| |
|
|
|
|
|
| |
| |
|
|
| MEASURING TABLE |
| |
|
| |
| Cast iron base: 127x102x48mm(5x4x1.9") |
| Anvil: 60x68mm(2.4x2.8") |
| Flatness DIN876 grade 00 |
| Column: ¦µ22x155mm(0.9x6.1") |
| Assistant stem: ¦µ18x140mm(0.7x5.5") |
| Clamp hole 3/8"DIA. with ¦µ8mm sleeve |
| Packed in carton |
| |
|
|
|
|
|
| |
| |
|
|

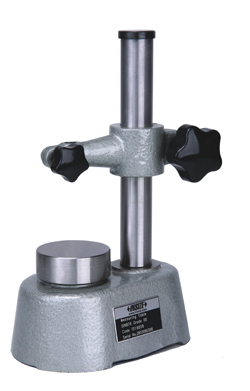

| MEASURING TABLE |
| |
|
| |
| Round table diameter ¦µ50mm/2", flatness DIN876 grade 00 |
| Column: ¦µ22mm/0.9" |
| Clamp hole 3/8"DIA.with ¦µ8mm sleeve |
| Packed in carton |
| |
|
|
|
|
|
|
| |
| |
|
|

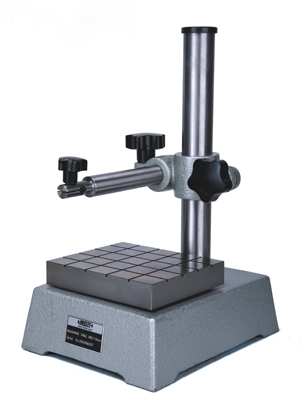

| MEASURING TABLE |
| |
|
| |
| Cast iron base: 127x102x48mm(5x4x1.9") |
| Anvil: 98x115mm(3.9x4.5") |
| Flatness DIN876 grade 00 |
| Column: ¦µ28mm/1.1" |
| Assistant stem: ¦µ18mm/0.7" |
| Clamp hole 3/8" DIA.with ¦µ8mm sleeve |
| Packed in carton |
| |
|
|
|
|
|
|
| |
| |
|
|
| MEASURING TABLE |
| |
|
| |
| Economic model |
| Cast iron base: 149x104x40mm(5.9x4.1x1.6") |
| Ground anvil: 85x82mm(3.3x3.2") |
| Column: ¦µ25x210mm(1x8.3") |
| With fine adjustment |
| Clamp hole 3/8" DIA.with ¦µ8mm sleeve |
| Packed in carton |
| |
|
|
|
|
|
