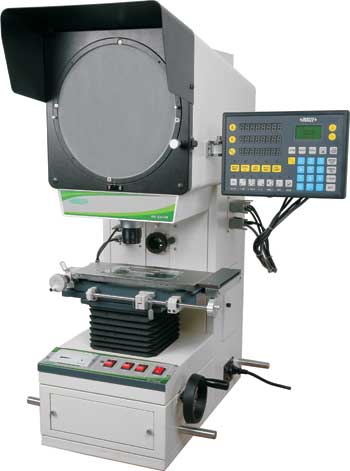

  MODEL ISP-Z3015B PROFILE PROJECTOR

 Technical specification
   Lens    magnification    10X(standard)   20X(option)   50X(option)   100X(option)
   view field    ¦µ30mm   ¦µ15mm   ¦µ6mm   ¦µ3mm
   working distance    75mm   69.6mm   27mm   26mm
  Table    metal table size      340x152mm
   X-Y-Z(focus) travel    150x50x80mm
   measuring accuracy    measuring accuracy:¡Ü(4+L/25)¦Ìm  (L is the measuring length in mm)
   resolution of X, Y axis    1¦Ìm
   max. load capacity    5Kg
   Projector screen    effective range>¦µ300mm (with cross lines)
   screen rotary range: 0¡ã¡«360¡ã
   rotary resolution: 1'
   Data processing system    multi-function data processing system, to gather the data and measure the point,    line,circle, angle and distance, RS232 data output
   IIlumination    transmission: 12V/100W halogen lamp
   Power supply    AC 220V 50HZ(standard)
   AC 110V 60HZ(option)
   Dimension(L¡ÁW¡ÁH)    480x780x1150 (mm)
   Weight    135kg
 Standard delivery
  Main unit    1pc
  10X lens with half-reflection mirror    1pc
  Mini printer    1pc
  Overlay chart clips    4pcs
   24V/150W halogen lamp    1pc
   12V/100W halogen lamp    1pc
   Fuse(5A, 3A)    5pcs each
   Level    1pc
   Anti-dust cover    1pc
 Optional accessories
   20X lens with half-reflection mirror
   50X lens with half-reflection mirror
   100X lens with half-reflection mirror
   2D measuring software
   Rotary table
   Magnifier
   50mm standard scale
   360mm reading scale
   Holder with clamp
   Swivel center support
   V-block with clamp
   Center support
   Vertical holder

    Manual
