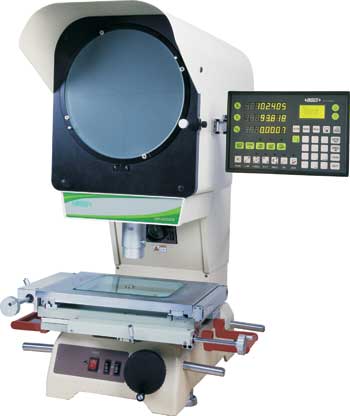

| MODEL ISP-AZ3025B PROFILE PROJECTOR |
|
| Adjust the focus by ascending and descending the project head, the table doesn' t ascend or descend
Maximum workpiece weight 15kg |
| Technical specification |
| Lens |
magnification |
10X(standard) |
20X(option) |
50X(option) |
100X(option) |
| view field |
¦µ30mm |
¦µ15mm |
¦µ6mm |
¦µ3mm |
| working distance |
76mm |
71mm |
57mm |
41mm |
| Table |
metal table size |
400x280mm |
| X-Y-Z( focus) travel |
200x150x100mm |
| measuring accuracy |
measuring accuracy:¡Ü(3+L/75)¦Ìm (L is the measuring length in mm) |
| resolution of X, Y axis |
1¦Ìm |
| max. load capacity |
15Kg |
| Projector screen |
effective range>¦µ300mm (with cross lines) |
| screen rotary range: 0¡ã¡«360¡ã |
| rotary resolution: 1' |
| Data processing system |
multi-function data processing system, to gather the data and measure the point, line,circle, angle and distance, RS232 data output |
| IIlumination |
transmission: 24V/150W halogen lamp |
| reflection: 24V/150W halogen lamp |
| Power supply |
AC 220V 50HZ(standard) |
| AC 110V 60HZ(option) |
| Dimension(L¡ÁW¡ÁH) |
410x650x1100 (mm) |
| Weight |
80kg |
|
| Standard delivery |
| Main unit |
1pc |
| 10X lens with half-reflection mirror |
1pc |
| Overlay chart chips |
4pcs |
| 24V/150W halogen lamp |
2pcs |
| Fuse(5A, 3A) |
5pcs each |
| Level |
1pc |
| Anti-dust cover |
1pc |
|
| Optional accessories |
| 20X lens with half-reflection mirror |
| 50X lens with half-reflection mirror |
| 100X lens with half-reflection mirror |
| 2D measuring software |
| Rotary table |
| Magnifier |
| 50mm standard scale |
| 360mm reading scale |
| Holder with clamp |
| Swivel center support |
| V-block with clamp |
| Center support |
| Vertical holder |
|
| |
| |
|
|
