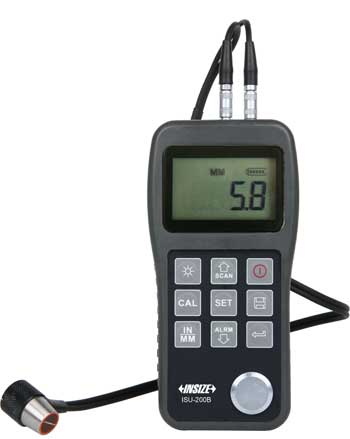

| MODEL ISU-200B ULTRASONIC THICKNESS GAUGE |
- Suitable for various materials such as steel, stainless steel, aluminum, glass, polystyrene, polyethylene, etc.
- Built-in standard block of 4.00mm for fast calibration
- LCD display with backlight
- With RS232 interface
|
| Technical specification |
| Measuring range |
0.75-300mm/0.03-12" |
| Resolution |
0.01mm/0.001" for range<100mm/4" |
| 0.1mm/0.01" for range¡İ100mm/4" |
| Velocity |
1000¡«9999m/s (3281-32806ft/s) |
| Power supply |
2¡Á1.5V AAA batteries |
| Dimension |
74x150x32mm |
| Weight |
250g/8.3oz |
|
| Standard delivery |
| Main unit |
1pc |
| Transducer ISU-T03 |
1pc |
| Battery |
2pcs |
| Couplant |
1 bottle |
|
| Optional accessories |
| Transducer: ISU-T01, ISU-T02, ISU-T04 |
| Cable and software |
|
| Specification of transducers |
| Code |
Frequency |
Measuring Range |
Diameter |
Temperature |
Minimum size of steel
pipe for measurement
(diameter x wall thickness) |
Application |
| ISU-T01 |
2.0MHz |
3.0-300mm/0.12-12.00" |
¦Õ16.3mm/0.64" |
<60¡æ/140¡ãF |
30x3mm/1.20x0.12" |
for casting steel |
| ISU-T02 |
7.5MHz |
0.75-50mm/0.03-2.00" |
¦Õ8.5mm/0.34" |
<60¡æ/140¡ãF |
15x2mm0.60x0.08" |
for thin material |
| ISU-T03 |
5.0MHz |
1.2-230mm/0.05-9.05" |
¦Õ10.8mm/0.43" |
<60¡æ/140¡ãF |
20x3mm/0.80x0.12" |
general use |
| IEU-T04 |
5.0MHz |
3.0-100mm/0.08-4.00" |
¦Õ13mm/0.51" |
<300¡æ/572¡ãF |
30x3mm/1.20x0.12" |
for high
temperature |
|
|
