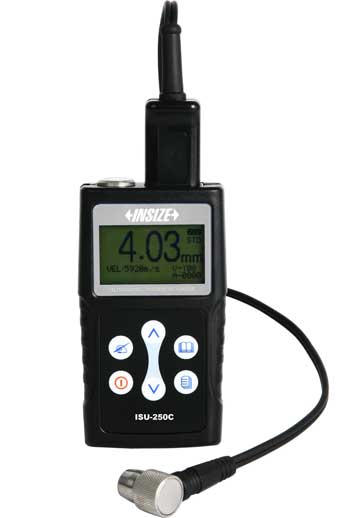

| MODEL ISU-250C ULTRASONIC THICKNESS GAUGE |
| |
| With Low-high indication and alarm |
| Average calculation of max. 9 readings |
| Memory of max. 5000 readings with location number |
| With USB interface |
| Built-in standard block of 4.00mm for fast calibration |
| LCD display with backlight |
| |
| Technical specification |
| Measuring range |
0.7-400mm/0.03-16'' |
| Resolution |
0.01mm/0.001'' for range < 100mm/4'' |
| 0.1mm/0.01'' for range¡İ100mm/4'' |
| Velocity |
1000-9999m/s (3281-32806ft/s) |
| Power supply |
2¡Á1.5V AAA batteries |
| Dimension |
64¡Á116¡Á27mm |
| Weight |
220g/7.8oz |
|
| Standard delivery |
| Main unit |
1pc |
| t Transducer ISU-T08 |
1pc |
| Battery |
2pcs |
Couplant
|
1 bottle |
| Software disc |
1pc |
| Cable to PC |
1pc |
|
| Optional accessories |
| Mini printer and cable |
| Transducer: ISU-T12, ISU-T06, ISU-13 |
|
| Specification for transducers |
| Code |
Frequency |
Measuring Range |
Diameter |
Temperature |
Minimum size of steel pipe for measurement (diameter x wall thickness) |
Application |
| ISU-T12 |
2.0MHz |
2.0-400mm/0.08-16.00'' |
¦µ16.3mm/0.64'' |
<60¡æ/140¨H |
30¡Á3mm/1.18¡Á0.12'' |
for casting steel |
| ISU-T06 |
7.5MHz |
0.7-50mm/0.03-2.00'' |
¦µ8.5mm/0.34'' |
<60¡æ/140¨H |
10¡Á1mm/0.40¡Á0.04'' |
for thin material |
| ISU-T08 |
5.0MHz |
0.8-300mm/0.03-12.00'' |
¦µ10.8mm/0.43'' |
<60¡æ/140¨H |
10¡Á1.2mm/0.40¡Á0.05'' |
general use |
| ISU-T13 |
5.0MHz |
3.0-100mm/0.08-4.00'' |
¦µ13mm/0.51'' |
<350¡æ/662¨H |
20¡Á2mm/0.80¡Á0.08'' |
for high temperature |
|
| |
|
