| Buradasınız: Ölçü Aletleri >> Mastarlar >> Johnson Mastarları |
 |
| Johnson Mastarları ( 1 | 2 | 3 ) |
|
|
 |
|
| |
|
|

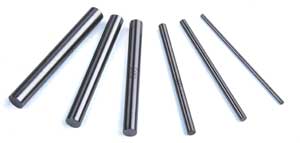

| IMPERIAL PIN GAGE |
| |
| Code |
Quantity (pcs) |
Size (inch) |
Step |
Accuracy |
| 4162-151 |
50 |
.011 - .060 |
0.001" |
+0.0002" |
| 4162-152 |
50 |
.0115- .0605 |
0.001" |
+0.0002" |
| 4162-1191 |
190 |
.061 - .250 |
0.001" |
+0.0002" |
| 4162-1192 |
190 |
.0615 - .2505 |
0.001" |
+0.0002" |
| 4162-1241 |
240 |
.011 - .250 |
0.001" |
+0.0002" |
| 4162-1242 |
240 |
.0115 - .2505 |
0.001" |
+0.0002" |
| 4162-1251 |
250 |
.251 - .500 |
0.001" |
+0.0002" |
| 4162-1252 |
250 |
.2515 - .5005 |
0.001" |
+0.0002" |
| 4162-1121 |
125 |
.501 - .625 |
0.001" |
+0.0002" |
| 4162-1122 |
125 |
.5015 - .6255 |
0.001" |
+0.0002" |
| 4162-1123 |
125 |
.626 - .750 |
0.001" |
+0.0002" |
| 4162-1124 |
125 |
.6265- .7505 |
0.001" |
+0.0002" |
| 4162-1821 |
82 |
.751 - .832 |
0.001" |
+0.0002" |
| 4162-1822 |
82 |
.7515- .8325 |
0.001" |
+0.0002" |
| 4162-1841 |
84 |
.833- .916 |
0.001" |
+0.0002" |
| 4162-1842 |
84 |
.8335- .9165 |
0.001" |
+0.0002" |
| 4162-1843 |
84 |
.917- 1.000 |
0.001" |
+0.0002" |
| 4162-1844 |
84 |
.9175- 1.0005 |
0.001" |
+0.0002" |
| Code |
Quantity (pcs) |
Size (inch) |
Step |
Accuracy |
| 4162-251 |
50 |
.011 - .060 |
0.001" |
-0.0002" |
| 4162-252 |
50 |
.0115- .0605 |
0.001" |
-0.0002" |
| 4162-2191 |
190 |
.061 - .250 |
0.001" |
-0.0002" |
| 4162-2192 |
190 |
.0615 - .2505 |
0.001" |
-0.0002" |
| 4162-2241 |
240 |
.011 - .250 |
0.001" |
-0.0002" |
| 4162-2242 |
240 |
.0115 - .2505 |
0.001" |
-0.0002" |
| 4162-2251 |
250 |
.251 - .500 |
0.001" |
-0.0002" |
| 4162-2252 |
250 |
.2515 - .5005 |
0.001" |
-0.0002" |
| 4162-2121 |
125 |
.501 - .625 |
0.001" |
-0.0002" |
| 4162-2122 |
125 |
.5015 - .6255 |
0.001" |
-0.0002" |
| 4162-2123 |
125 |
.626 - .750 |
0.001" |
-0.0002" |
| 4162-2124 |
125 |
.6265- .7505 |
0.001" |
-0.0002" |
| 4162-2821 |
82 |
.751 - .832 |
0.001" |
-0.0002" |
| 4162-2822 |
82 |
.7515- .8325 |
0.001" |
-0.0002" |
| 4162-2841 |
84 |
.833- .916 |
0.001" |
-0.0002" |
| 4162-2842 |
84 |
.8335- .9165 |
0.001" |
-0.0002" |
| 4162-2843 |
84 |
.917- 1.000 |
0.001" |
-0.0002" |
| 4162-2844 |
84 |
.9175- 1.0005 |
0.001" |
-0.0002" |
|
| |
| Measure hole size, calculate distance between holes
Use for GO/NO GO gage |
| Accuracy +0.0001", and -0.0001¡° are optional
|
| Made of steel
|
| Packed in wooden box
|
| |
|
|
|
|
|
|
|
|
