  Buradasınız: Ölçü Aletleri >> Mikrometreler >> Dış Çap Mikrometreleri
Dış Çap Mikrometreleri ( 1 | 2 | 3 | 4 | 5 | 6 )





  OUTSIDE MICROMETER WITH ADJUSTABLE ANVIL

  Code   Range   Code   Range
  3205-400   300-400mm   3205-16   12-16"
  3205-500   400-500mm   3205-20   16-20"
  3205-600   500-600mm   3205-24   20-24"
  3205-700   600-700mm   3205-28   24-28"
  3205-800   700-800mm   3205-32   28-32"
  3205-900   800-900mm   3205-36   32-36"
  3205-1000   900-1000mm   3205-40   36-40"
  3205-1200   1000-1200mm   3205-48   40-48"
  3205-1400   1200-1400mm   3205-56   48-56"
  3205-1600   1400-1600mm   3205-64   56-64"
  3205-1800   1600-1800mm   3205-72   64-72"
  3205-2000   1800-2000mm   3205-80   72-80"

  • Adjustable anvil for different measuring ranges
    		•
  • Graduation: metric    0.01mm
    •                        inch       0.001"
  • DIN863
    		•
  • Hollow pipe frame for light weight
    		•
  • Ratchet stop, carbide tips
  • With zero adjusting wrench
    		•
  • Supplied with standard rods
    		•
  • Packed in wooden box
    		•




    Casting frame
    Pipe frame

      OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS

      Code   Range   Code   Range
      3206-50   0-50mm   3206-2   0-2"
      3206-100   0-100mm   3206-4   0-4"
      3206-150   0-150mm   3206-6   0-6"
      3206-101   50-100mm   3206-41   2-4"
      3206-151   50-150mm   3206-61   2-6"
      3206-200   100-200mm   3206-8   4-8"
      3206-300   150-300mm   3206-12   6-12"
      3206-301   200-300mm   3206-121   8-12"
      3206-400   300-400mm   3206-16   12-16"
      3206-500   400-500mm   3206-20   16-20"
      3206-600   500-600mm   3206-24   20-24"
      3206-700   600-700mm   3206-28   24-28"
      3206-800   700-800mm   3206-32   28-32"
      3206-900   800-900mm   3206-36   32-36"
      3206-1000   900-1000mm   3206-40   36-40"

  • Interchangeable anvils for different measuring range
    		•
  • With ratchet stop to fix anvils
    		•
  • Graduation:metric  0.01mm
    •                       inch 0.0001"(within 12" ) , 0.001" (over 12" )
  • DIN863
    		•
  • Micrometers within 300mm/12" have casting frame,
    		•
       over 300mm/12" have pipe frame
  • Ratchet stop,carbide tips
  • With zero adjusting wrench
    		•
  • Supplied with standard rods
    		•
  • Packed in wooden box
    •



    Pipe frame
    Casting frame

      ELECTRONIC OUTSIDE MICROMETER WITH INTERCHANGEABLE   ANVILS

      Code   Range
      3506-50   0-50mm/0-2"
      3506-100   0-100mm/0-4"
      3506-150   0-150mm/0-6"
      3506-101   50-100mm/2-4"
      3506-151   50-150mm/2-6"
      3506-200   100-200mm/4-8"
      3506-300   150-300mm/6-12"
      3506-301   200-300mm/8-12"
      3506-400   300-400mm/12-16"
      3506-500   400-500mm/16-20"
      3506-600   500-600mm/20-24"
      3506-700   600-700mm/24-28"
      3506-800   700-800mm/28-32"
      3506-900   800-900mm/32-36"
      3506-1000   900-1000mm/36-40"

  • Interchangeable anvils for different measuring range
    		•
  • With ratchet stop to fix anvils
    		•
  • Resolution:0.001mm/0.00005"
    		•
  • Buttons:on/off, data set, mm/in conversion, ABS/INC, data output
    		•
  • IP54 protection
    		•
  • SR44 battery, with one spare battery,auto power off
    		•
  • RS232 output,supplied with data output cable,ratchet stop,carbide tips
    		•
  • DIN863
    		•
  • Micrometers within 300mm/12" have casting frame,over 300mm/12"
    		•
       have pipe frame
  • With zero adjusting wrench
    		•
  • With battery cover wrench
    		•
  • Supplied with standard rods
    		•
  • Packed in wooden box
    •



    Pipe frame
    Steel plate frame

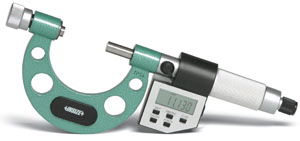

      ELECTRONIC OUTSIDE MICROMETER WITH INTERCHANGEABLE   ANVILS

      Code   Range
      3106-50   0-50mm/0-2"
      3106-100   0-100mm/0-4"
      3106-150   0-150mm/0-6"
      3106-101   50-100mm/2-4"
      3106-151   50-150mm/2-6"
      3106-200   100-200mm/4-8"
      3106-300   150-300mm/6-12"
      3106-301   200-300mm/8-12"
      3106-400   300-400mm/12-16"
      3106-500   400-500mm/16-20"
      3106-600   500-600mm/20-24"
      3106-700   600-700mm/24-28"
      3106-800   700-800mm/28-32"
      3106-900   800-900mm/32-36"
      3106-1000   900-1000mm/36-40"

  • Interchangeable anvils for different measuring range
    		•
  • With ratchet stop to fix anvils
    		•
  • Resolution:0.001mm/0.00005"
    		•
  • Buttons:on/off, data set, mm/in conversion, ABS/INC, data output
    		•
  • IP54 protection
    		•
  • SR44 battery, with one spare battery, auto power off
    		•
  • RS232 output, ratchet friction thimble, carbide tips
    		•
  • DIN863
    		•
  • Micrometers within 300mm/12" have steel plate frame,
    		•
  • over 300mm/12" have pipe frame
    		•
  • With battery cover wrench
    		•
  • Supplied with standard rods
    		•
  • Packed in wooden box
    •

    　
