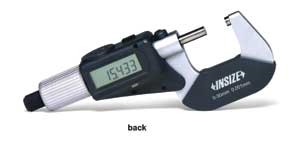

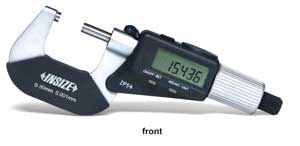

| DOUBLE DISPLAY ELECTRONIC OUTSIDE MICROMETER |
| Code |
Range |
| 3104-30 |
0-30mm/0-1.2" |
| 3104-55 |
25-55mm/1-2.2" |
| 3104-80 |
50-80mm/2-3.2" |
| 3104-105 |
75-105mm/3-4.2" |
| 3104-130 |
100-130mm/4-5.2" |
| 3104-155 |
125-155mm/5-6.2" |
3104-180 |
150-180mm/6-7.2" |
| 3104-205 |
175-205mm/7-8.2" |
|
| Double sides display, in two directions |
| Resolution:0.001mm/0.00005" |
| Buttons:on/off, data set, mm/inch, ABS/INC, LCD direction change |
| IP54 protection |
| CR2032 battery, with one spare battery,auto power off |
| RS232 output, ratchet friction thimble, carbide tips |
| DIN863 |
| With battery cover wrench and spare spherical anvil |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
|
| |
| |
|
|
| ELECTRONIC OUTSIDE MICROMETER |
| |
| Code |
Range |
| 3100-25 |
0-25mm/0-1" |
| 3100-50 |
25-50mm/1-2" |
| 3100-75 |
50-75mm/2-3" |
| 3100-100 |
75-100mm/3-4" |
| 3100-125 |
100-125mm/4-5" |
| 3100-150 |
125-150mm/5-6" |
| 3100-175 |
150-175mm/6-7" |
| 3100-200 |
175-200mm/7-8" |
| Code |
Range |
| 3100-33 |
0-75mm/0-3" (3pcs) |
| 3100-44 |
0-100mm/0-4" (4pcs) |
| 3100-66 |
0-150mm/0-6" (6pcs) |
|
| |
| Resolution:0.001mm/0.00005" |
| Buttons:on/off, data set, mm/inch, ABS/INC, data output |
| IP54 protection |
| SR44 battery, with one spare battery, auto power off |
| RS232 output, ratchet friction thimble,carbide tips |
| DIN863 |
| With battery cover wrench and spare spherical anvil |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| ELECTRONIC OUTSIDE MICROMETER |
| |
| Code |
Range |
| 3101-25 |
0-25mm/0-1" |
| 3101-50 |
25-50mm/1-2" |
| 3101-75 |
50-75mm/2-3" |
| 3101-100 |
75-100mm/3-4" |
| 3101-125 |
100-125mm/4-5" |
| 3101-150 |
125-150mm/5-6" |
| 3101-175 |
150-175mm/6-7" |
| 3101-200 |
175-200mm/7-8" |
| 3101-225 |
200-225mm/8-9" |
| 3101-250 |
225-250mm/9-10" |
| 3101-275 |
250-275mm/10-11" |
| 3101-300 |
275-300mm/11-12" |
| Code |
Range |
| 3101-753 |
0-75mm/0-3" (3pcs) |
| 3101-1004 |
0-100mm/0-4" (4pcs) |
| 3101-1506 |
0-150mm/0-6" (6pcs) |
|
| |
| Thimble graduation: 0.01mm(option:0.0001") |
| Buttons:on/off, data set, mm/inch, ABS/INC, data output
Reading in metric and inch |
| IP65 protection
Resolution: 0.001mm/0.00005" |
| SR44 battery, with one spare battery,auto power off |
| RS232 output, supplied with data output cable, ratchet stop, carbide tips |
| DIN863 |
| With battery cover, spare spherical anvil and zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| ELECTRONIC OUTSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3108-25 |
0-25mm |
3108-1 |
0-1" |
| 3108-50 |
25-50mm |
3108-2 |
1-2" |
| 3108-75 |
50-75mm |
3108-3 |
2-3" |
| 3108-100 |
75-100mm |
3108-4 |
3-4" |
| 3108-125 |
100-125mm |
3108-5 |
4-5" |
| 3108-150 |
125-150mm |
3108-6 |
5-6" |
| 3108-175 |
150-175mm |
3108-7 |
6-7" |
| 3108-200 |
175-200mm |
3108-8 |
7-8" |
| 3108-225 |
200-225mm |
3108-9 |
8-9" |
| 3108-250 |
225-250mm |
3108-10 |
9-10" |
| 3108-275 |
250-275mm |
3108-11 |
10-11" |
| 3108-300 |
275-300mm/ |
3108-12 |
11-12" |
| Code |
Range |
Code |
Range |
| 3108-753 |
0-75mm (3pcs) |
3108-33 |
0-3"(3pcs) |
| 3108-1004 |
0-100mm (4pcs) |
3108-34 |
0-4"(4pcs) |
| 3108-1506 |
0-150mm (6pcs) |
3108-35 |
0-6"(6pcs) |
|
| |
| Resolution: metric 0.001mm/ inch 0.00005" |
| Reading in metric or inch, without mm-in conversion |
| Buttons:on/off, data se, ABS/INC |
| IP54 protection
Ratchet stop, carbide tips |
| SR44 battery, with one spare battery, auto power off |
| DIN863 |
| With battery cover wrench,spare spherical anvil and zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
| |
| |
|
|
| ELECTRONIC OUTSIDE MICROMETER |
| |
| Code |
Range |
| 3109-25 |
0-25mm/0-1" |
| 3109-50 |
25-50mm/1-2" |
| 3109-75 |
50-75mm/2-3" |
| 3109-100 |
75-100mm/3-4" |
| 3109-125 |
100-125mm/4-5" |
| 3109-150 |
125-150mm/5-6" |
| 3109-175 |
150-175mm/6-7" |
| 3109-200 |
175-200mm/7-8" |
| Code |
Range |
| 3109-33 |
0-75mm/0-3" (3pcs) |
| 3109-44 |
0-100mm/0-4" (4pcs) |
| 3109-66 |
0-150mm/0-6" (6pcs) |
|
| |
| Resolution: 0.001mm/0.00005" |
| Buttons: on/off, data set, mm/inch, ABS/INC |
| SR44 battery, with one spare battery, auto power off |
| Ratchet friction thimble, carbide tips |
| DIN863 |
| With battery cover wrench and spare spherical anvil |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
|
|
|
|
