| Buradasınız: Ölçü Aletleri >> Mikrometreler >> Boru Tipi Mikrometreler |
 |
| Boru Tipi Mikrometreler ( 1 | 2 | 3 ) |
|
|
 |
|
| |
|
|

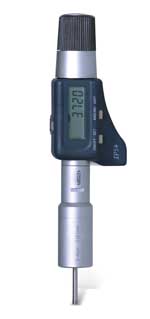

| ELECTRONIC THREE POINTS INSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
Measuring depth |
| 3127-4 |
3-4mm |
3127-E016 |
0.12-0.16" |
22.5mm/0.9" |
| 3127-5 |
4-5mm |
3127-E02 |
0.16-0.2" |
22.5mm/0.9" |
| 3127-6 |
5-6mm |
3127-E024 |
0.2-0.24" |
22.5mm/0.9" |
| |
|
3127-E028 |
0.24-0.28" |
0.9" |
| Code |
Range |
Code |
Range |
| 3127-363 |
3-6mm (3pcs) |
3127-E284 |
0.12-0.28" (4pcs) |
|
| |
| Resolution:0.001mm/0.00005" |
| Buttons:on/off, data set, mm/inch, ABS/INC |
| IP54 protection |
| SR44 battery, with one spare battery,auto power off |
| Ratchet stop, carbide tips |
| RS232 output |
| With standard ring |
| Packed in aluminum box |
|
| |
|
|
| |
| |
|
|
|
|
| |
| |
|
|

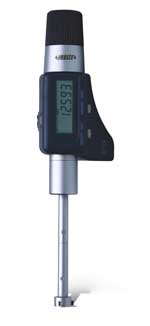

| ELECTRONIC THREE POINTS INSIDE MICROMETER |
| |
| Code |
Range |
| 3127-8 |
6-8mm |
| 3127-10 |
8-10mm |
| 3127-12 |
10-12mm |
| Code |
Range |
| 3127-123 |
6-12mm (3pcs) |
| Code |
Range |
| 3127-E035 |
0.275-0.35" |
| 3127-E043 |
0.35-0.425" |
| 3127-E05 |
0.425-0.5" |
| Code |
Range |
| 3127-E053 |
0.275-0.5" (3pcs) |
|
| |
| Resolution:0.001mm/0.00005" |
| Measuring depth 53.5mm/2.11", with extension rod 100mm/4" |
| Buttons: on/off, data set, mm/inch, ABS/INC |
| IP54 protection |
| SR44 battery, with one spare battery, auto power off |
| Ratchet stop, carbide tips |
| RS232 output |
| With standard ring |
| Packed in aluminum box |
|
| |
|
|
| |
| |
|
|
|
| |
| |
|
|

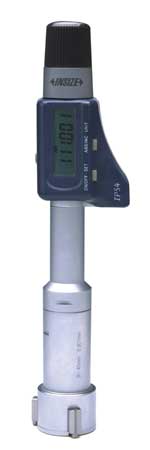

| ELECTRONIC THREE POINTS INSIDE MICROMETER |
| |
| Code |
Range |
Measuring depth(mm) |
| 3127-16 |
12-16mm |
80 |
| 3127-20 |
16-20mm |
80 |
| 3127-25 |
20-25mm |
90 |
| 3127-30 |
25-30mm |
90 |
| 3127-40 |
30-40mm |
97 |
| 3127-50 |
40-50mm |
97 |
| 3127-63 |
50-63mm |
114 |
| 3127-75 |
62-75mm |
114 |
| 3127-88 |
75-88mm |
114 |
| 3127-100 |
87-100mm |
114 |
| Code |
Range |
Measuring depth(inch) |
| 3127-E065 |
0.5-0.65" |
3.2" |
| 3127-E08 |
0.65-0.8" |
3.2" |
| 3127-E1 |
0.8-1" |
3.6" |
| 3127-E112 |
1-1.2" |
3.6" |
| 3127-E16 |
1.2-1.6" |
3.88" |
| 3127-E2 |
1.6-2" |
3.88" |
| 3127-E25 |
2-2.5" |
4.56" |
| 3127-E3 |
2.5-3" |
4.56" |
| 3127-E35 |
3-3.5" |
4.56" |
| 3127-E4 |
3.5-4" |
4.56" |
|
| |
| Code |
Range |
| 3127-202 |
12-20mm (2pcs) |
| 3127-504 |
20-50mm (4pcs) |
| 3127-1004 |
50-100mm (4pcs) |
| Code |
Range |
| 3127-E082 |
0.5-0.8" (2pcs) |
| 3127-E24 |
0.8-2" (4pcs) |
| 3127-E44 |
2-4" (4pcs) |
|
| |
| Resolution:0.001mm/0.00005" |
| With extension rod150mm/6" |
| Buttons:on/off, data set, mm/inch, ABS/INC |
| IP54 protection |
| SR44 battery, with one spare battery, auto power off |
| RS232 output |
| Ratchet stop, carbide tips |
| With standard ring |
| Packed in aluminum box |
|
| |
|
|
| |
| |
| |
| |
|
|
|
| |
| |
|
|
| ELECTRONIC THREE POINTS INSIDE MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3127-125 |
100-125mm |
3127-E5 |
4-5" |
| 3127-150 |
125-150mm |
3127-E6 |
5-6" |
| 3127-175 |
150-175mm |
3127-E7 |
6-7" |
| 3127-200 |
175-200mm |
3127-E8 |
7-8" |
| 3127-225 |
200-225mm |
3127-E9 |
8-9" |
| 3127-250 |
225-250mm |
3127-E10 |
9-10" |
| 3127-275 |
250-275mm |
3127-E11 |
10-11" |
| 3127-300 |
275-300mm |
3127-E12 |
11-12" |
|
| |
| Resolution: 0. 001mm / 0.00005" |
| Measuring depth 150mm/6", with extension rod 150mm/6" |
| Measuring heads are interchangeable |
| Buttons:on/off, data set, mm/inch, ABS/INC |
| IP54 protection |
| SR44 battery, with one spare battery, auto power off |
| RS232 output |
| Ratchet stop, carbide tips |
| Standard ring is optional |
| Packed in aluminum box |
|
| |
|
|
| |
|
|
|
|
