Dijital Kaplama Kalınlığı Aletleri Model 1250F |
|
|
 |
|
|
|
|
|
| |

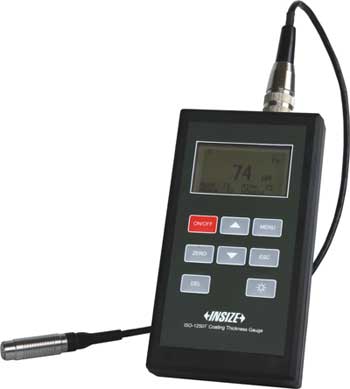

| MODEL ISO-1250F COATING THICKNESS GAUGE |
| |
| Application: measure the thickness of non-magnetic coating layer on magnetic material
With tolerance and alarm setting |
| Technical specification |
| Operating principle |
magnetic induction |
| Measuring material |
substrate material |
magnetic material such as steel, alloy, iron, nickel and so on
non-magnetic material such as copper, zinc, aluminium, chromium,painting,
plastic, porcelain enama, paper, black oxided and so on |
| coating material |
| Measuring range |
0¡«1500¦Ìm/0~60mil |
| Resolution |
1¦Ìm or 0.01mil |
| Accuracy |
(1%L+1)¦Ìm L is thickness to be measured in ¦Ìm |
| Calibration mode |
two points calibration mode and one point calibration mode |
| Measuring mode |
continuous and single |
| Min. radius of rod to be measured |
1.5mm |
| Min. area to be measured |
¦Õ7 |
| Min. thickness of substrate material |
0.5mm |
| Memory |
500 |
| Power supply |
9V battery |
| Dimension |
126¡Á65¡Á27mm |
| Weight |
300g |
|
| Standard delivery |
| Main unit |
1pc |
| F type probe |
1pc |
| Calibration base |
1pc |
| Calibration foil |
5pcs |
| 9V battery |
1pc |
|
|
|
|
