Dijital Kaplama Kalınlığı Aletleri Model 1250N

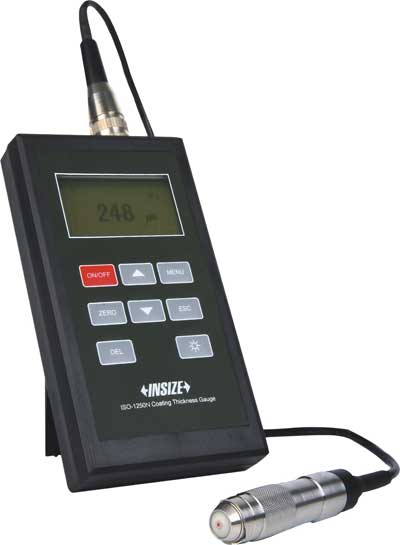

  MODEL ISO-1250N COATING THICKNESS GAUGE

  • Application: measure the thickness of non-conductive coating layer on conductive material
  • With tolerance and alarm setting
    •   Technical specification
      Operating principle   eddy current
      Measuring material   substrate material   conductive material such as alloy, copper, aluminium, zinc and so on
      coating material   non-conductive material such as powder, painting, plastic and so on
      Measuring range   0¡«1500¦Ìm/0~60mil
      Resolution   1¦Ìm or 0.01mil
      Accuracy   (1%L+1.5)¦Ìm                      L is thickness to be measured in ¦Ìm
      Calibration mode   two points calibration mode and one point calibration mode
      Measuring mode   continuous and single
      Min. radius of rod to be measured   3mm
      Min. area to be measured   ¦Õ7mm
      Min. thickness of substrate material   0.3mm
      Memory   500
      Power supply   9V battery
      Dimension   126¡Á65¡Á27mm
      Weight   300g
      Standard delivery
      Main unit   1pc
      N type probe   1pc
      Calibration base   1pc
      Calibration foil   5pcs
      9V battery   1pc
        Manual
    　
