Dijital Kaplama Kalınlığı Aletleri Model 1250 B

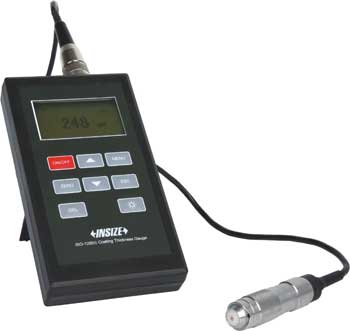

  MODEL ISO-1250B COATING THICKNESS GAUGE

  • The mian unit can accept different probes
  • Probes are supplied with calibration base and calibration foil
  •   Specification of probe
      Code     ISO-P400F     ISO-P1500F     ISO-P10KF     ISO-P400N     ISO-P1500N
      Resolution 0.1¦Ìm/0.01mil 1¦Ìm/0.01mil 10¦Ìm/1mil 0.1¦Ìm/0.01mil 1¦Ìm/0.01mil
      Accuracy
      (L is the measuring
      thickness in ¦Ìm)

      (1%L+0.7)¦Ìm  (1%L+1)¦Ìm  (2%L+10)¦Ìm  (1%L+0.7)¦Ìm  (1%L+1.5)¦Ìm
      Measuring range
      0-400¦Ìm/0-16mil 0-1500¦Ìm/0-60mil 0-10¦Ìm/0-400mil 0-400¦Ìm/0-16mil 0-1500¦Ìm/0-60mil
      Min. area to
      be measured
     ¦Õ3mm  ¦Õ7mm  ¦Õ40mm  ¦Õ4mm  ¦Õ7mm
      Min. thickness of
      subtraste material
    0.3mm 0.5mm 2mm 0.2mm 0.3mm
      Min. radius of rod
      to be measured
    1mm 1.5mm 10mm 1.5mm 3mm
      Measuring
      material
      coating   non-magnetic material such as copper, chromium, aluminium,
      zinc, painting, plastic, porcelain enama, paper, black oxided
      non-conductive material such as powder,   painting, plastic
      substrate   magnetic material such as steel, alloy, iron, nickel   conductive material such as alloy, copper, aluminium, zinc
      Specification of main unit
      Calibration mode   two points calibration mode and one point calibration mode
      Measuring mode   continuous or single
      Output   RS232
      Memory   500
      Power supply   9V battery
      Dimension   126x65x27mm
      Weight   300g
      Optional accessories
      Cable and software
      Printer
        Manual
