ÇEKME GERMELER

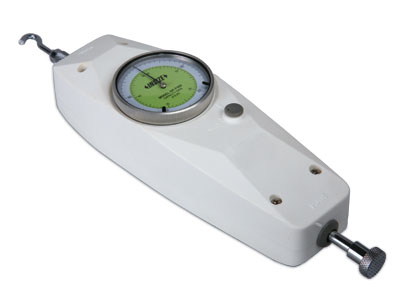

  PUSH/PULL FORCE GAUGE

  • Single click can make a measurement conversion from peak force to tracking force
  • Tolerance indication
  • The scales provide both N and kgf  or lbf and N graduations
  • Accuracy ¡À1%
  •   Technical specification
      Model
    ISF-F10
    ISF-F20
    ISF-F30
    ISF-F50
    ISF-F100
    ISF-F200
    ISF-F300
    ISF-F500
      Max. Load
    kgf
    1
    2
    3
    5
    10
    20
    30
    50
    N
    10
    20
    30
    50
    100
    200
    300
    500
      Graduation
    gf
    5
    10
    20
    20
    50
    100
    200
    200
    N
    0.05
    0.1
    0.2
    0.2
    0.5
    1
    2
    2

      Model
    ISF-FL2
    ISF-FL5
    ISF-FL10
    ISF-FL20
    ISF-FL30
    ISF-FL50
    ISF-FL100
      Max. Load
    lbf
    2
    5
    10
    20
    30
    50
    100
    N
    9
    22
    44
    88
    100
    220
    440
      Graduation
    lbf
    0.01
    0.02
    0.05
    0.1
    0.2
    0.2
    0.5
    N
    0.05
    0.1
    0.2
    0.5
    0.5
    1
    2
      Standard delivery
      Main unit
      1pc
      Push tip   4pcs (1pc flat, 1pc point, 1pc V-type, 1pc knife-edge)
      Pull clamp   1pc
      Extension rod   1pc
      M3x12 Screw   5pcs
        Manual
