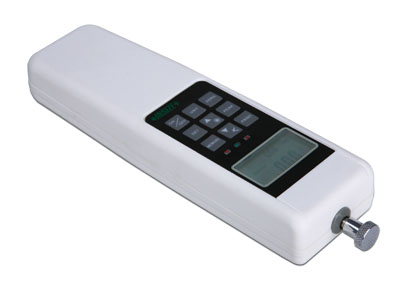

| DIGITAL PUSH/PULL FORCE GAUGE |
| |
| Digital display of tension and compression forces, display in two directions (selectable)
Capture the peak value of pull / push force, data track, automatic peak release function
Measuring units (kgf, N, lbf) are selectable
RS232C output, transmit the data to printer or computer to save into "Excel", for analysis or print
Initial input of the tolerance limit (high/ low) enables the gauge to judge the measured result as GO/ NG
10 groups of data can be memorized for analysis
Runs on internal NiCd rechargeable battery or AC/DC adapter
Automatic power off
Alarm is selectable for overload and NG |
| Technical specification |
| Model |
ISF-DF2 |
ISF-DF5 |
ISF- DF10 |
ISF- DF20 |
ISF- DF50 |
ISF- DF100 |
ISF- DF200 |
ISF- DF500 |
ISF- DF1K |
ISF- DF2K |
ISF-DF5K |
ISF- DF10K |
ISF- DF20K |
ISF- DF50K |
ISF- DF100K |
| Max.load |
N |
2 |
5 |
10 |
20 |
50 |
100 |
200 |
500 |
1K |
2K |
5K |
10K |
20K |
50K |
100K |
| Resolution |
N |
0.001 |
0.001 |
0.005 |
0.01 |
0.01 |
0.05 |
0.1 |
0.1 |
0.5 |
1 |
1 |
5 |
10 |
10 |
50 |
| Sensor |
internal |
external |
| Accuracy |
¡À 0.5 % |
| Dimension |
228x66x36 (mm) |
|
| Standard delivery |
| Model |
ISF-DF2 |
ISF-DF5 |
ISF- DF10 |
ISF- DF20 |
ISF- DF50 |
ISF- DF100 |
ISF- DF200 |
ISF- DF500 |
ISF- DF1K |
ISF- DF2K |
ISF-DF5K |
ISF- DF10K |
ISF- DF20K |
ISF- DF50K |
ISF- DF100K |
| Main unit |
1pc |
| AC/DC adapter |
1pc |
| Push/pull attachment |
6pcs (1pc flat push tip, 1pc point push tip, 1pc V-type
push tip, 1pc knife-edge push tip, 1pc pulling clamp,
1pc extension rod) |
5pcs (1pc small flat push tip, 1pc medium flat push tip, 1pc large flat push tip, 2pcs pulling clamps) |
| M3x12 screw |
5pcs |
|
| Optional accessories |
|
|
|
|
