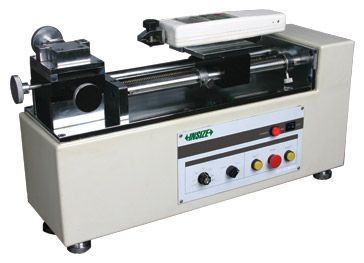

| MODEL ISF-HTS500 MOTORIZED HORIZONTAL TEST STAND |
| |
| Motorized horizontal tensile/compress test stand applied with force gauges |
| Technical specification |
| Max. load |
500N/111lbf |
| Travel |
250mm/10'' |
| Test speed |
25 - 480mm/min(1-19inch/min) |
| Max. distance |
280mm/11'' |
| Power supply |
AC220V 50HZ (standard) |
| AC110V 60HZ (option) |
| Dimension |
570 x 200 x 300 (mm) |
|
| Standard delivery |
| Main unit |
1pc |
| Clamp |
1pc |
| Wrench |
1pc |
| Power cable |
1pc |
|
| Optional accessories |
| Clamps: ISF-C01, ISF-C02, ISF-C03, ISF-C04, ISF-C05, ISF-C06, ISF-C07, ISF-C8,ISF-C09, ISF-C10, ISF-C11, ISF-C12, ISF-C13, ISF-C14, ISF-C15, ISF-C16 |
|
|
|
