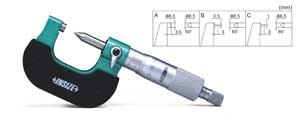

| SINGLE POINT MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3266-25 |
0-25mm |
3266-1 |
0-1" |
| 3266-50 |
25-50mm |
3266-2 |
1-2" |
| 3266-75 |
50-75mm |
3266-3 |
2-3" |
| 3266-100 |
75-100mm |
3266-4 |
3-4" |
|
| |
Graduation: metric 0.01mm
inch 0.0001" |
| To measure drills, grooves and hard-to-reach dimentions |
| Type A anvil is standard,type B and C are optional |
| Ratchet stop,carbide tips |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
| |
|
|
|
| |
| |
|
|
|
|
| |
| |
|
|
| ELECTRONIC SINGLE POINT MICROMETER |
| |
| Code |
Code |
Range |
| 3566-25 |
3166-25 |
0-25mm/0-1" |
| 3566-50 |
3166-50 |
25-50mm/1-2" |
| 3566-75 |
3166-75 |
50-75mm/2-3" |
| 3566-100 |
3166-100 |
75-100mm/3-4" |
|
| |
| Resolution: 0.001mm/0.00005" |
| To measure drills, grooves and hard-to-reach dimentions |
| Type A anvilis standard,type B and C are optional, same as 3266 |
| Buttons:on/off, data set, mm/in, ABS/INC, data output |
| IP54 protection |
| SR44 battery, with one spare battery, auto power off |
| RS232 output, 3566 is supplied with data output cable |
| Carbide tips |
| With battery cover wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
