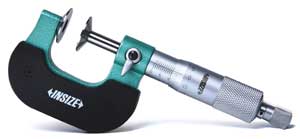

| DISK MICROMETER |
| |
| Code |
Range |
Dia. of disk |
| 3282-25 |
0-25mm |
20mm |
| 3282-50 |
25-50mm |
20mm |
| 3282-75 |
50-75mm |
20mm |
| 3282-100 |
75-100mm |
20mm |
| 3282-125 |
100-125mm |
30mm |
| 3282-150 |
125-150mm |
30mm |
| 3282-175 |
150-175mm |
30mm |
| 3282-200 |
175-200mm |
30mm |
| Code |
Range |
Dia. of disk |
| 3282-1 |
0-1" |
0.8" |
| 3282-2 |
1-2" |
0.8" |
| 3282-3 |
2-3" |
0.8" |
| 3282-4 |
3-4" |
0.8" |
| 3282-5 |
4-5" |
1.2" |
| 3282-6 |
5-6" |
1.2" |
| 3282-7 |
6-7" |
1.2" |
| 3282-8 |
7-8" |
1.2" |
|
| |
| Graduation:metric 0.01mm |
| inch 0.0001" |
| Ratchet stop |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
|
| |
|
|
| |
| |
|
|
|
|
| |
| |
|
|
| NON ROTATING SPINDLE DISK MICROMETER |
| |
| Code |
Range |
Dia. of disk |
Code |
Range |
Dia. of disk |
| 3294-25 |
0-25mm |
20mm |
3294-1 |
0-1" |
0.8¡° |
| 3294-50 |
25-50mm |
20mm |
3294-2 |
1-2" |
0.8¡° |
| 3294-75 |
50-75mm |
20mm |
3294-3 |
2-3" |
0.8¡° |
| 3294-100 |
75-100mm |
20mm |
3294-4 |
3-4" |
0.8¡° |
| 3294-125 |
100-125mm |
30mm |
3294-5 |
4-5" |
1.2¡± |
| 3294-150 |
125-150mm |
30mm |
3294-6 |
5-6" |
1.2¡± |
| 3294-175 |
150-175mm |
30mm |
3294-7 |
6-7" |
1.2¡± |
| 3294-200 |
175-200mm |
30mm |
3294-8 |
7-8" |
1.2¡± |
|
| |
| Graduation: metric 0.01mm |
| inch 0.0001" |
| Non-rotating spindle |
| Ratchet stop |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
|
| |
|
|
| |
| |
|
|
|
| |
| |
|
|
| NON ROTATING SPINDLE ELECTRONIC DISK MICROMETER |
| |
| Code |
Code |
Range |
Dia. of disk |
| 3594-25 |
3194-25 |
0-25mm/0-1" |
20mm/0.8'' |
| 3594-50 |
3194-50 |
25-50mm/1-2" |
20mm/0.8'' |
| 3594-75 |
3194-75 |
50-75mm/2-3" |
20mm/0.8'' |
| 3594-100 |
3194-100 |
75-100mm/3-4" |
20mm/0.8'' |
| 3594-125 |
3194-125 |
100-125mm/4-5" |
30mm/1.2'' |
| 3594-150 |
3194-150 |
125-150mm/5-6" |
30mm/1.2'' |
| 3594-175 |
3194-175 |
150-175mm/6-7" |
30mm/1.2'' |
| 3594-200 |
3194-200 |
175-200mm/7-8" |
30mm/1.2'' |
|
| |
| Resolution:0.001mm/0.00005" |
| Non-rotating spindle |
| Buttons:on/off, data set, mm/in, ABS/INC, data output |
| SR44 battery, with one spare battery, auto power off |
| RS232 output, 3594 is supplied with data output cable |
| With battery cover wrench |
| Supplied with standard rods |
| Packed in plastic box or wooden box |
|
| |
|
|
3594 |
| 3194 |
|
|
|
| |
|
|
|
| |
|
|
| LARGE DISK MICROMETER |
| |
| Code |
Range |
Code |
Range |
| 3289-25 |
0-25mm |
3289-1 |
0-1" |
| 3289-50 |
25-50mm |
3289-2 |
1-2" |
| 3289-75 |
50-75mm |
3289-3 |
2-3" |
| 3289-100 |
75-100mm |
3289-4 |
3-4" |
|
| |
| Graduation: metric 0.01mm |
| inch 0.001" |
| Diameter of disk 60mm/2.4" |
| Non-rotating spindle |
| Ratchet stop |
| With zero adjusting wrench |
| Supplied with standard rods |
| Packed in wooden box |
|
| |
|
|
| |
| |
|
|
|
|
