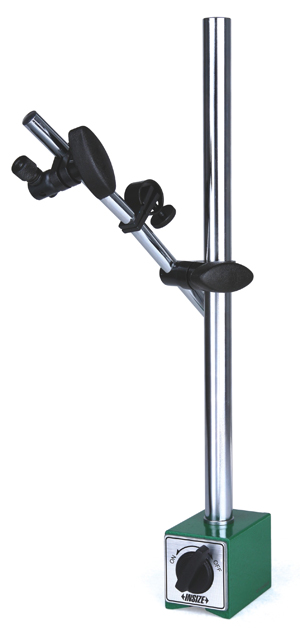

| HEAVY DUTY MAGNETIC STAND |
| |
| Code |
Magnetic force |
Main stem |
Assistant stem |
Base |
| 6202-80 |
80kgf/176lbf |
¦µ16x225mm (0.6x8.9") |
¦µ12x190mm (0.5x7.5") |
60x50x55mm (2.4x2x2.2") |
| 6202-100 |
100kgf/220lbf |
¦µ20x360mm (0.8x14.2") |
¦µ12x220mm (0.5x8.7") |
73x50x55mm (2.9x2x2.2") |
|
| |
| With fine adjustment |
| Clamp hole 3/8"DIA. with ¦µ8mm sleeve |
| For dial indicators with lug back or flat back |
| Magnetic base with on/off switch |
| Packed in carton |
| |
|
|
|
|
|
|
|
| |
| |
|
|

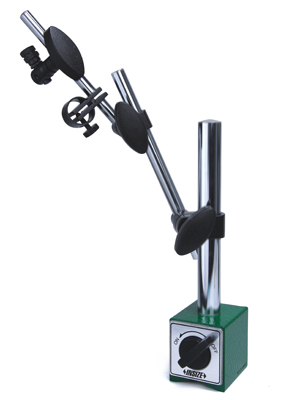

| HEAVY DUTY MAGNETIC STAND |
| |
| Code |
Magnetic force |
Main stem |
Assistant stem |
Branch stem |
Base |
| 6220-80 |
80kgf/176lbf |
¦µ20x170mm
(0.8x6.7") |
¦µ14x170mm
(0.6x6.7") |
¦µ10x127mm
(0.4x5") |
60x50x55mm
(2.4x2x2.2") |
| 6220- 100 |
100kgf/220lbf |
¦µ20x400mm
(0.8x15.8") |
¦µ16x360mm
(0.6x14.2") |
¦µ12x150mm
(0.5x6") |
73x50x55mm
(2.9x2x2.2") |
|
| |
| With fine adjustment |
| Clamp hole 3/8" DIA.with ¦µ8mm sleeve |
| For dial indicators with lug back or flat back |
| Magnetic base with on/off switch |
| Packed in carton |
| |
|
|
|
|
|
|
|
