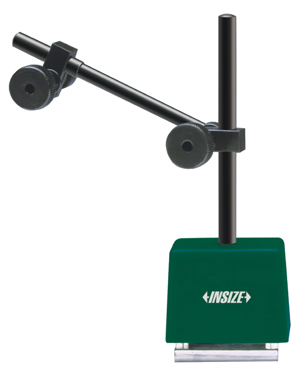

| SMALL MAGNETIC STAND |
| |
| Code |
Magnetic force |
| 6213-25 |
25kgf/55lbf |
|
| |
| Main stem:¦µ7.8x102mm(0.31x4") |
| Assistant stem:¦µ6.7x113mm(0.26x4.4") |
| Base:55x37x52mm(2.2x1.5x2") |
| With steel plate to isolate magnet |
| For dial indicators with lug back |
| Packed in carton box |
| |
|
|
|
|
|
|
|
| |
| |
|
|

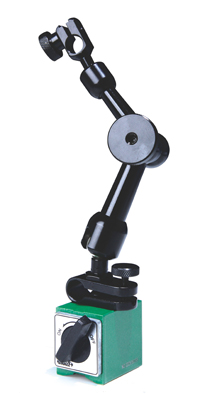

| MINI MAGNETIC STAND |
| |
| Code |
Magnetic force |
| 6204-40 |
40kgf/88lbs |
|
| |
| For dial test indicators |
| Overall stem length 170mm/6.7'' |
| Dovetail groove |
| Clamp hole 3/8" DIA. with ¦µ8mm sleeve |
| With fine adjustment |
| Base: 36x30x35mm(1.4x1.2x1.42"), with on/off switch |
| Packed in carton box |
| |
|
|
|
|
|
|
| |
| |
|
|

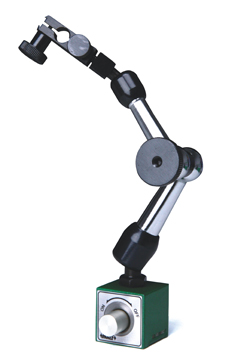

| MINI MAGNETIC STAND |
| |
| Code |
Magnetic force |
| 6223-18 |
18kgf/40lbf |
|
| |
| For dial test indicators |
| Overall stem length 180mm/7.1" |
| Dovetail groove |
| Clamp hole 3/8" DIA. with ¦µ8mm sleeve |
| With fine adjustment |
| Base: 30x30x30mm(1.2x1.2x1.2"), with on/off push button |
| Packed in carton |
| |
|
|
|
|
|
|
|
