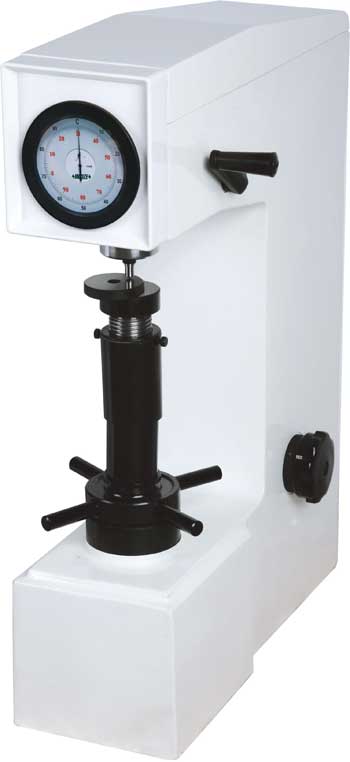

| MODEL ISH-NR150 ROCKWELL HARDNESS TESTER |
| |
| Basic Rockwell tester
Direct analogue reading of Rockwell scales HRC, HRA and HRB |
| Technical specification |
| Measuring range |
20-88HRA, 20-100HRB, 20-70HRC |
| Test loads |
10kgf preload, 60, 100, 150kgf total load |
| Display |
dial indicator |
| Hardness resolution |
0.5 of Rockwell unit |
| Max. test height |
170mm/6.7'' |
| Max. throat |
165mm/6.5'' |
| Dimension |
520¡Á240¡Á700mm |
| Weight |
80kg/176lbs |
|
| Standard delivery |
| Main unit |
1pc |
| Large flat anvil |
1pc |
| Small flat anvil |
1pc |
| V-type anvil |
1pc |
| Diamond Rockwell indenter |
1pc |
| Rockwell ball ¦µ1.5875mm indenter |
1pc |
| Spare ball ¦µ1.5875mm |
5pcs |
| Rockwell test block HRB85-95 |
1pc |
| Rockwell test block HRC60-70 |
1pc |
| Rockwell test block HRC20-30 |
1pc |
|
|
|
