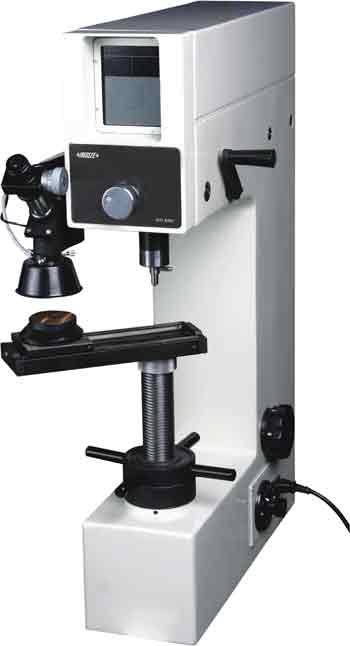

| MODEL ISH-BRV BRINELL/ROCKWELL/VICKERS HARDNESS TESTER |
| |
| Technical specification |
| Rockwell test load |
10kgf preload, 60, 100, 150kgf total load |
| Brinell test load |
31.2, 62.5, 187.6kgf |
| Vickers test load |
30, 100kgf |
| Magnification of microscope |
37.5X, 75X |
| Max. test height |
200mm/7.9'' |
| Max. throat |
200mm/7.9'' |
| Power supply |
AC 220V 50Hz(standard) |
| AC 110V 60Hz(option) |
| Dimension |
546¡Á300¡Á767mm |
| Weight |
90kg/198lbs |
|
| Standard delivery |
| Main unit |
1pc |
| Diamond Rockwell indenter |
1pc |
| Diamond Vickers indenter |
1pc |
| ¦µ1.5875mm,¦µ2.5mm, ¦µ5mm ball indenter |
1pc each |
| Large anvil |
1pc |
| Small anvil |
1pc |
| V-anvil |
1pc |
| Rockwell test block HRC(high, low) |
1pc each |
| Rockwell test block HRB |
1pc |
| Brinell test block |
1pc |
| Vickers test block |
1pc |
| Weight |
5pcs |
| Microscope seating |
1pc |
| 15X micrometer eyepiece |
1pc |
| 2.5X, 5X objective |
1pc each |
| Baffle anvil |
1set |
| Taper anvil |
1pc |
| Fuse(0.5A) |
2pcs |
| Bulb(6V/15W) |
2pcs |
| Bulb(6V/5W) |
4pcs |
| Anti-dust cover |
1pc |
|
|
|
|
