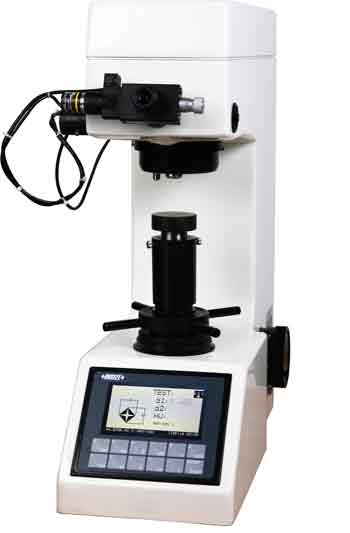

| DIGITAL VICKERS HARDNESS TESTER |
| |
| Adjustable brightness of indention
Electricity loss protection device by lithium battery
Conversion to hardness scales Rockwell, Brinell
Built-in printer and RS232 |
| Technical specification |
| MODEL |
ISH-DV10 |
ISH-DV50 |
| Measuring range |
8HV0.3¡«2500HV10 |
5HV1¡«2500HV50 |
| Test force |
0.3, 0.5, 1.0, 3.0, 5.0, 10.0kgf |
1.0, 5.0, 10.0, 20.0, 30.0, 50.0kgf |
| Load control |
automatic(loading / dwell / unloading) |
| Display |
LCD |
| Load duration |
5-60sec |
| Magnification of microscope |
for measurement:200X
(objective 20X/eyepiece 10X) |
for measurement:100X
(objective 10X/eyepiece10X) |
for observation:100X
(objective 10X/eyepiece 10X) |
| Resolution of microscope |
0.0625¦Ìm |
0.25¦Ìm |
| Max. test height |
160mm/6.3'' |
| Max. throat |
135mm/5.3'' |
| Power supply |
AC 220V, 50Hz(standard) |
AC 110V, 60Hz(option) |
| Dimension |
650¡Á540¡Á270mm |
| Weight |
40kg/88lbs |
45kg/99lbs |
|
| Standard delivery |
| MODEL |
ISH-DV10 |
ISH-DV50 |
| Main unit |
1pc |
1pc |
| Anvil (large flat, medium flat, V-type) |
1pc each |
1pc each |
| Vickers test block (high, medium) |
2pcs |
2pcs |
| Objective |
2pcs(10X, 20X ) |
1pc(10X) |
| Eyepiece 10X |
1pc |
1pc |
| Built-in printer |
1pc |
1pc |
| Spare bulb |
2pcs |
2pcs |
| Adjustable feet |
4pcs |
4pcs |
|
| Optional accessories |
| Slice holder |
| Cylinder holder |
| Vice |
| X-Y stage |
| Level |
| Knoop indenter |
| 16X micrometer eyepiece |
| 6.8 inch liquid crystal display |
|
|
|
