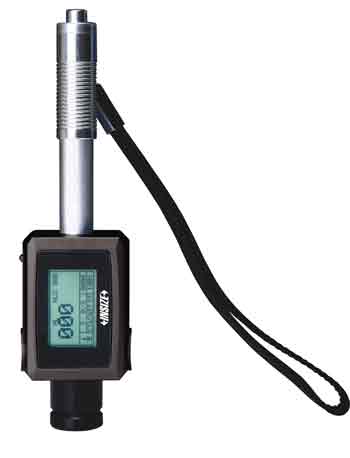

| MODEL ISH-SPH PORTABLE HARDNESS TESTER |
| |
Pocket size
Based on HL, can be converted to HRB,HRC,HV, HB,HS and tensile strength
Automatic orientation correction
USB interface for both battery charge and data transfer
One charge of battery for 16 hours of continuous work
Internal memory in a batch of 1250 average readings
LCD display with backlight
Automatic power off
Low and hight limits setting with judgment
|
| Technical specification |
| Hardness scales |
HL, HRC, HRB, HV, HB, HS |
| Accuracy |
¡À0.5% (HLD=800) |
| Memory |
1250 |
| Display |
scale, hardness value, impact direction, average value, max/min value, material, type of impact device,
battery power |
| Output |
USB |
| Power |
built-in 3.7V rechargeable lithium battery |
| Working temperature |
-20¡æ~+40¡æ(-4¡ãF ~ 104¡ãF) |
| Dimension |
158mm ¡Á 41mm¡Á 26mm |
| Weight |
120g/4.2oz |
|
| Standard delivery |
| Main unit |
1pc |
| Impact device D |
1pc |
| Standard test block |
1pc |
| Cleaning brush |
1pc |
| Small supporting ring |
1pc |
| Software and cable |
1pc |
| AC adapter/charger |
1pc |
|
| Optional accessories |
| Mini printer and cable |
| Impact device : C, DL |
Support rings: ISH-R1015, ISH-R14530, ISH-R2550, ISH-R1113,
ISH-R12517,
ISH-R16530, ISH-SR1015, ISH-SR14530. ISH-SR1113, ISH-SR12517, ISH-SR16530, ISH-RUN |
|
| Material and range of impact device D |
| Material |
HL |
HRC |
HRB |
HB |
HS |
HV |
| 30D2 |
10D2 |
| Steel |
300-900 |
20.0-68.0 |
38.4-99.5 |
80-647 |
|
32.5-99.5 |
80-940 |
| Tool steel |
300-640 |
20.4-67.1 |
46.5-101.7 |
|
|
|
80-898 |
| Stainless steel |
300-800 |
19.6-62.4 |
|
85-656 |
|
|
85-802 ¡¡ |
| Cast iron GG |
360-650 |
|
|
90-334 |
|
|
¡¡ |
| Cast iron GGG |
400-660 |
|
|
131-367 |
|
|
|
| Cast aluminum |
174-560 |
|
|
|
20-190 |
|
¡¡ |
| Brass |
200-550 |
|
13.5-95.3 |
|
40-173 |
|
¡¡ |
| Bronze |
300-700 |
|
|
|
60-290 |
|
¡¡ |
| Copper |
200-690 |
|
|
|
45-315 |
¡¡ |
¡¡ |
|
|
|
