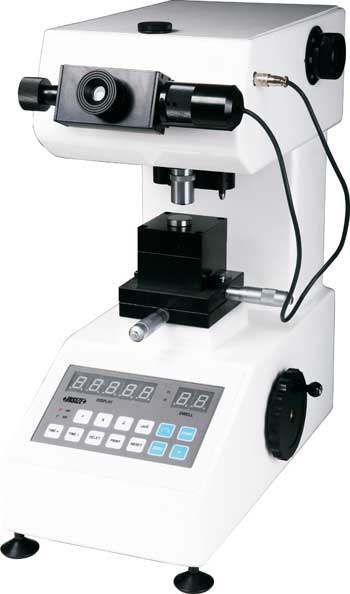

| MODEL ISH-TDV1000 AUTO-TURRET DIGITAL MICRO HARDNESS TESTER |
| |
| Technical specification |
| Measuring range |
5HV¡«3000HV |
| Test load |
0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5,1kgf |
| Vickers scales |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Load control |
automatic(loading/dwell/unloading) |
| Load duration |
5-60s(12 steps) |
| Test force selection |
dial |
| Objective |
10X, 40X |
| Eyepiece |
15X |
| Total magnification |
150X(for observation), 600X(for measuring) |
| Resolution |
0.025¦Ìm |
| Max. test height |
85mm/3.3'' |
| Max. throat |
85mm/3.3'' |
| X-Y stage |
dimensions:100¡Á100mm(3.9x3.9'') |
| travel range:25¡Á25mm(1.0x1.0'') |
| reading:0.01mm |
| Measuring mode |
read hardness value from display |
| Power supply |
AC 220V, 50Hz(standard) |
| AC 110V, 60Hz(option) |
| AC 220V, 60Hz(option) |
| Dimension |
540¡Á500¡Á640mm |
| Weight |
45kg/99lbs |
|
| Standard delivery |
| Main unit |
1pc |
| Micro Vickers indenter |
1pc |
| Micro Vickers test block (700HV1, 400HV0.2) |
1pc each |
| X-Y stage, slice holder, cylinder holder, vice |
1pc each |
| 10X, 40X objective |
1pc each |
| 15X digital eyepiece |
1pc |
| Level |
1pc |
| Built-in printer |
1pc |
| Spare bulb |
2pcs |
| Spare fuse |
2pcs |
| Camera adaptor |
1pc |
| Screwdriver |
1pc |
| Wrench |
2pcs |
|
| Optional accessories |
| Knoop indenter |
| Digital camera |
|
|
|
