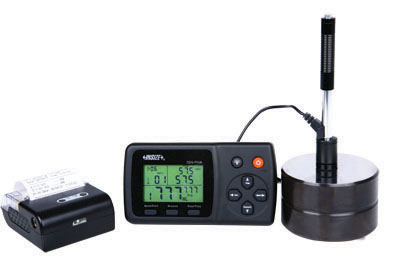

| MODEL ISH-PHA PORTABLE HARDNESS TESTER |
| |
| Large LCD display with backlight
Communicate with printer via wireless IR
Low and high limits setting with judgment
Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength Mpa
Automatic power off
Conforms to the standard ASTM A956-02 |
| Technical specification |
| Resolution |
1HL, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa |
| Accuracy |
¡À6HL (HL=800) |
| Display |
hardness HL, conversion hardness, impact direction, test times, average value, material, date |
| Output |
wireless IR and USB |
| Workpiece |
min. weight: 5kg
min. thickness: 5mm
min. thickness of layers: 0.8mm
min. radius of curved surface: 11mm |
| Power supply |
three AAA alkaline batteries |
| Working temperature |
0¡æ~50¡æ (32¡ãF- 122¡ãF) |
| Dimension |
150mm ¡Á 80mm¡Á 24mm (5.9¡Á3.1¡Á0.9 inch) |
| Weight |
200g/7.1oz |
|
| Standard delivery |
| Main unit |
1pc |
| Impact device D |
1pc |
| Printer |
1pc |
| Cleaning brush |
1pc |
| Small supporting ring |
1pc |
| Standard test block |
1pc |
| AC/DC adapter |
1pc |
|
| Material and range for impact device D |
| Material |
HL |
HV |
HB |
HRC |
HRB |
HS |
Tensile strength |
| Steel & cast steel |
300-910 |
83-976 |
140-651 |
19.8-68.5 |
59.6-99.6 |
26.4-99.5 |
375-2639 |
| Tool steel |
300-640 |
80-900 |
|
21-67 |
|
|
|
| Stainless steel |
300-800 |
85-802 |
85-655 |
20-62 |
47-102 |
¡¡ |
|
| Cast iron |
360-660 |
|
140-387 |
|
|
¡¡ |
|
| Cast aluminum alloy |
170-560 |
|
30-159 |
|
|
¡¡ |
|
| Brass |
200-550 |
|
40-173 |
|
13.5-95.3 |
¡¡ |
|
| Bronze |
300-700 |
|
60-290 |
|
|
¡¡ |
|
| Copper |
200-690 |
|
45-315 |
|
¡¡ |
¡¡ |
|
|
|
|
