A lerler



  CENTER ANGLE GAGE

  Code   Range  Graduation
  4810-601   60  1mm and 0.5mm on one side
  4810-602   60  14ths and 20ths on one side, 24ths and 32ths   on another side
  4810-55   55   14ths and 20ths on one side

  • Each piece has 4 angle gaging surfaces
  • Packed in pouch
  •

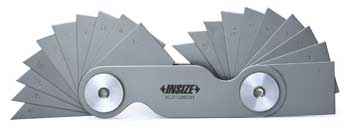

      ANGLE GAGE

      Code   Range  Size of blade  Quantity of  blade
      4806-20   1-45  1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12,  14, 16, 18, 20, 25, 30, 35, 40,  45  20pcs

  • For internal angles
  • Made of alloy steel, precision ground
  • Packed in pouch
  •




      ANGLE GAGE SET

      Code
      4807

      Primary angle   1/2 primary angle   Complimentary   angle
      5   230"   175
      10   5   170
      15   730"   165
      20   10   160
      25   1230"   155
      30   15   150
      35   1730"   145
      40   20   140
      45   2230"   135
      50   25   130
      55   2730"   125
      60   30   120
      65   3230"   115
      70   35   110
      75   3730"   105
      80   40   100
      85   4230"    95
      90   45    90

  • Consisting of 18 blades, each blade checks primary, 1/2 primary and complimentary angles
  • Each blade has 8 gaging surfaces
  • For inside and outside checking
  • Blades marked with angles
  • Made of alloy steel
  • Packed in pouch
  •
