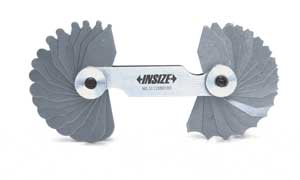

| RADIUS GAGE |
| |
| Code |
Range |
Size of blade |
Concave blade |
Convex blade |
| 4801-17 |
1-7mm |
1, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 2.75, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm |
17pcs |
17pcs |
| 4801-16 |
7.5-15mm |
7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15mm |
16pcs |
16pcs |
| 4801-15 |
15.5-25mm |
15.5, 16, 16.5, 17, 17.5, 18, 18.5, 19, 19.5, 20, 21, 22, 23, 24, 25mm |
15pcs |
15pcs |
| 4801-15E |
1/32"-1/4" |
1/32, 3/64, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4" |
15pcs |
15pcs |
| 4801-16E |
17/64"-1/2" |
17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2" |
16pcs |
16pcs |
| 4801-16E1 |
17/32"-1" |
17/32, 9/16, 19/32, 5/8, 21/32, 11/16, 23/32, 3/4, 25/32, 13/16. 27/32, 7/8, 29/32, 15/16, 31/32, 1" |
16pcs |
16pcs |
|
| |
| Made of alloy steel |
| Concave/convex surfaces with radius on each blade |
| Packed in carton |
| |
|
|
|
|
|
|
|
| |
| |
|
|
| RADIUS GAGE SET |
| |
| Code |
Range |
Size of blade |
Quantity of blade |
Handle |
| 4804-26 |
0.5 to 13mm |
0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13mm |
26pcs |
With |
| 4804-22 |
0.5 to 15mm |
0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 8, 9, 10, 11, 12, 13, 14, 15mm |
22pcs |
With |
| Code |
Range |
Size of blade |
Quantity of blade |
Handle |
| 4804-25E |
1/64 to 1/2" |
1/64, 1/32, 3/64, 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 7/32, 15/64, 1/4, 17/64, 9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2" |
25pcs |
With |
| 4804-8E |
9/16 to 1" |
9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1" |
8pcs |
Without |
| 4804-8E1 |
1-1/16" to 1-1/2" |
1-1/16, 1-1/8, 1-3/16, 1- 1/4, 1-5/16, 1-3/8, 1- 7/16, 1-1/2" |
8pcs |
Without |
| 4804-26E |
0.010 to 0.5" |
0.010, 0.015, 0.020, 0.025, 0.030, 0.040, 0.050, 0.060, 0.070, 0.080, 0.090, 0.100, 0.12, 0.14, 0.16, 0.18, 0.20, 0.22, 0.24, 0.26, 0.28, 0.30, 0.35, 0.40, 0.45, 0.50" |
26pcs |
With |
| 4804-10E |
0.55 to 1" |
0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1" |
10pcs |
Without |
|
| |
| Made of alloy steel, precision ground |
| Each piece has 5 concave or convex gaging surfaces |
| Packed in plastic pouch |
| |
|
|
|
| |
|
|
